EFFON Bluetooth 1D Ring Barcode Scanner EF02 – Zebra Scan Engine
Compact. Durable. Hands-Free 1D Laser Scanning
Product Overview
The EF02 Ring Scanner is a top-tier 1D laser barcode scanner designed for hands-free, high-performance scanning in demanding warehouse and logistics environments.
Equipped with the Zebra scan engine, this compact and rugged ring scanner delivers exceptional speed and accuracy for 1D barcode scanning. Its wearable design enhances mobility and productivity, making it the perfect tool for order picking, inventory tracking, and logistics operations.
Whether you're looking for a Bluetooth ring scanner or a durable wearable barcode solution, the EF02 is built to help workers scan faster, work smarter, and stay connected.
Key Features
🚀 Zebra Laser Engine
Equipped with the high-performance Zebra 1D laser engine, the EF02 emits a precise horizontal laser line—ideal for fast-paced environments like parcel and logistics handling. When shipping labels contain 4–5 barcodes, the laser engine enables rapid focus and accurate decoding of the correct 1D barcode.
✋ Hands-Free Wearable Design
The ring-style scanner allows workers to scan while keeping both hands free for picking, packing, or sorting. This hands-free setup maximizes mobility and efficiency during high-volume tasks such as order picking and inventory counting.
🛡️ Rugged & Ergonomic Build
Designed for harsh environments, the EF02 is both durable and comfortable for all-day use. Its form factor is optimized for repetitive scanning workflows commonly found in warehouses and field operations.
🧤 Ambidextrous Fit
The scanner features a 180° rotating design that supports both left- and right-hand use. Workers can easily switch hands for maximum flexibility and comfort.
🌧️ IP65-Rated Ruggedness
The EF02 is dustproof and water-resistant, making it suitable for tough industrial settings. Ideal for use in furniture warehouses, building material distribution centers, and logistics hubs.
⏱️ Warehouse-Optimized Performance
From picking and sorting to packing and shipping, the EF02 enables fast and efficient barcode scanning throughout the entire warehouse workflow.
🛠️ 2-Year Warranty
Backed by a reliable 2-year manufacturer's warranty, the EF02 offers peace of mind and dependable performance for long-term operations.
Specifications of EF02 1D Laser Ring Scanner
| Dimension | 55.0×39.2×51.2 mm (L×W×H) |
| Weight(g) | 65 g |

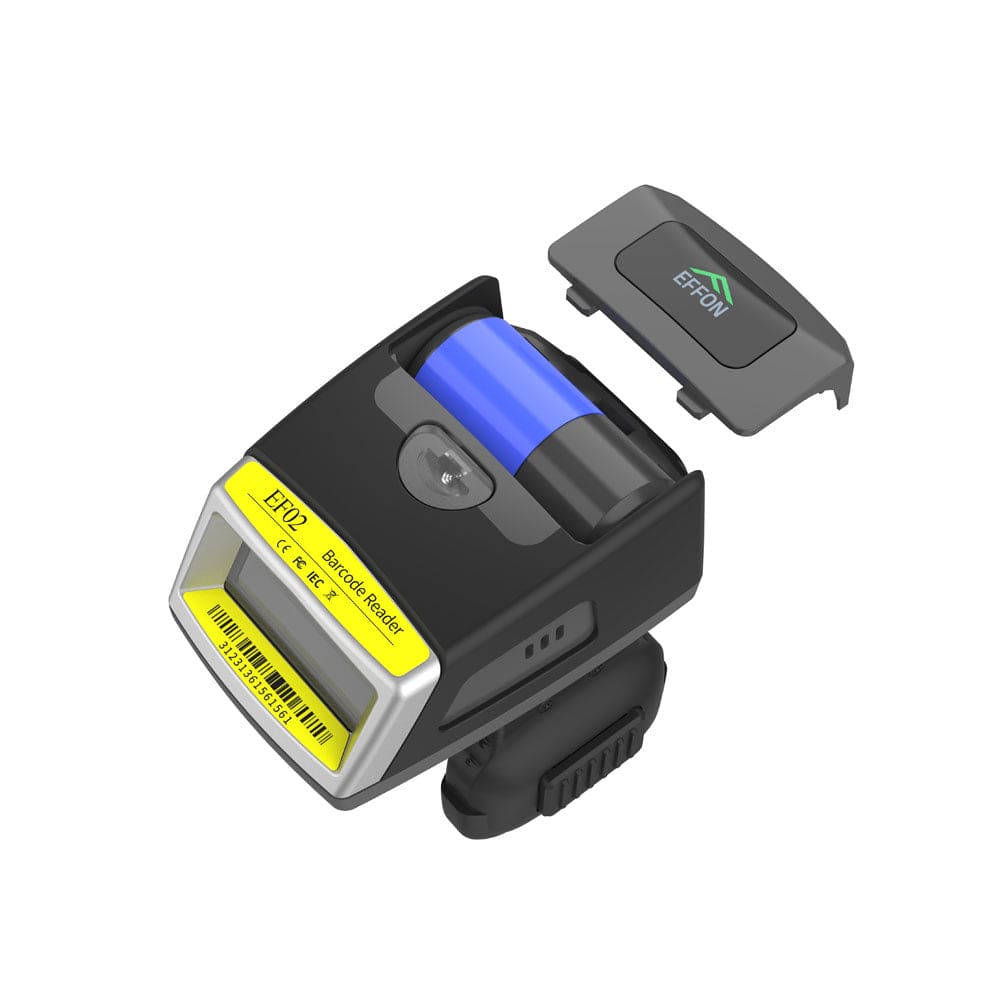

| Battery Capacity | 550mAh removable |
| Working Horus | 9.8 hours, 5s/scan, 7100 scans |
|
Battery Capacity
|
550mAh Replaceable |
| Charging Time | 2 hours full charge |
| Bluetooth Transmission | 50Meter |
| Scanning Type | 1D:
UPC-A, UPC-E, UPC-E1, EAN-8/-
JAN-8, EAN-13/JAN-13, Bookland
EAN, Code 128, GS1-128
(formerly UCC/EAN-128), ISBT
128, Code 39, Trioptic Code 39,
Code 93, Code 11, Discrete 2 of 5,
Chinese 2 of 5, Matrix 2 of 5,
Korean 3 of 5, Codabar, MSI
|
| Connectivity | Bluetooth 4.2(BLE) |
| Compatibility | Android, iOS, Windows |
|
Communication
|
Bluetooth HID, SPP, BLE with 30M distance,
Support NFC pairing, RS232 cable(optional)
|
| IP Rating | IP65 |
|
Tumble Spec
|
2,000 3.28 ft./1m tumbles
|
|
Operating Temperature
|
-10°C to 60°C
|
|
Storage
|
-20°C to 60°C
|
📦 What’s in the Box
✅ 1× EF02 1D Ring Scanner
✅1× 550mAh Rechargeable Battery（inside the scanner）

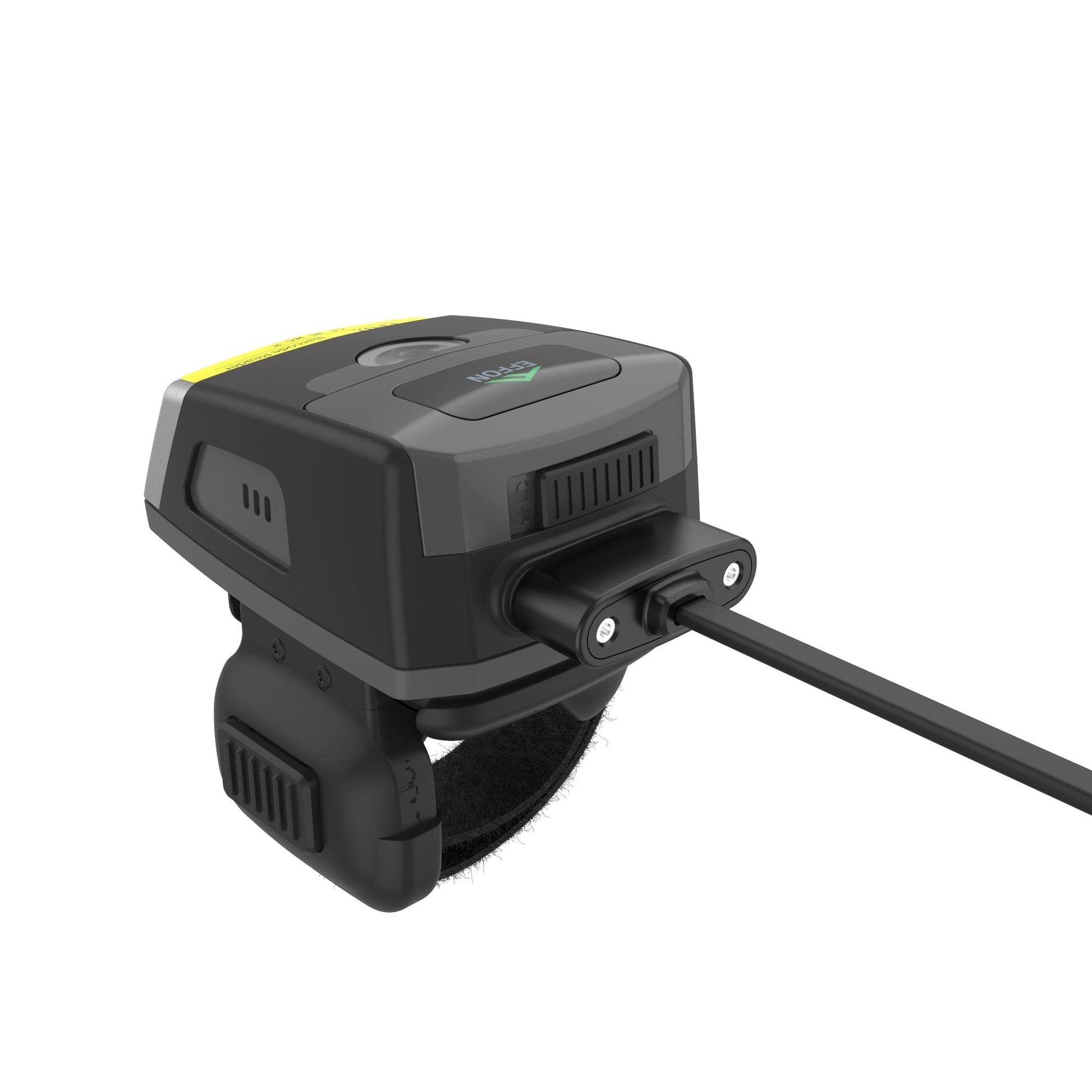

✅1× Magnetic Charging Cable
✅1× Replaceable Strap
✅1x BFP2 Charging Station
✅1× User Manual
Optional Accessories
Need to charge multiple units or connect to a PC? Check out our charger accessories:
📞 Batch Orders & Custom Quotes
Looking to boost your warehouse efficiency with hands-free scanning?
👉 Contact Us: Info@effon.com today to request a bulk order quote or explore custom solution options.
EFFON — A trusted ring scanner manufacturer with 15 years of industry experience. Our in-house R&D team and dedicated factory ensure top-tier quality, product flexibility, and fast delivery for every customer.
