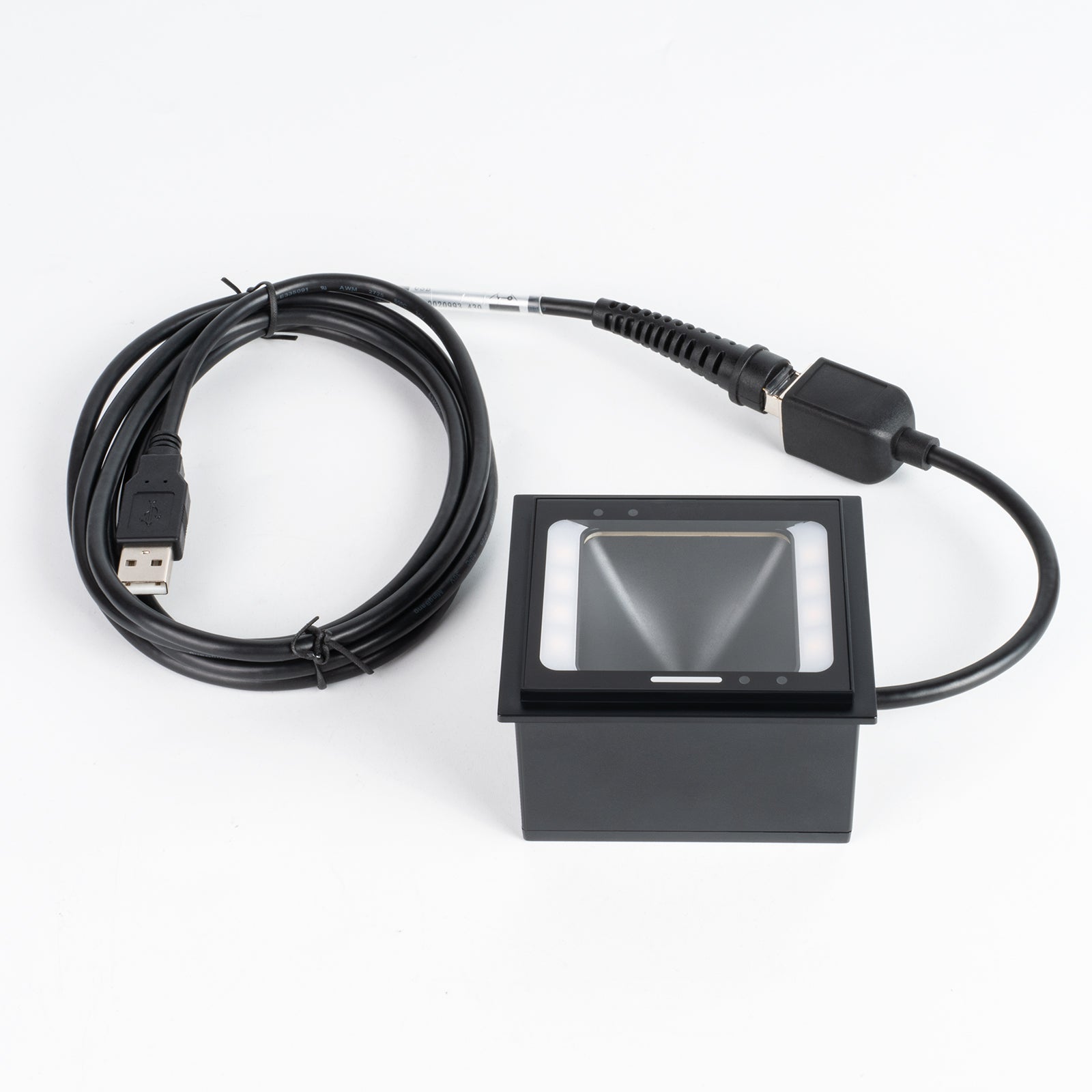

• Fixed Mount Barcode Reader TD27

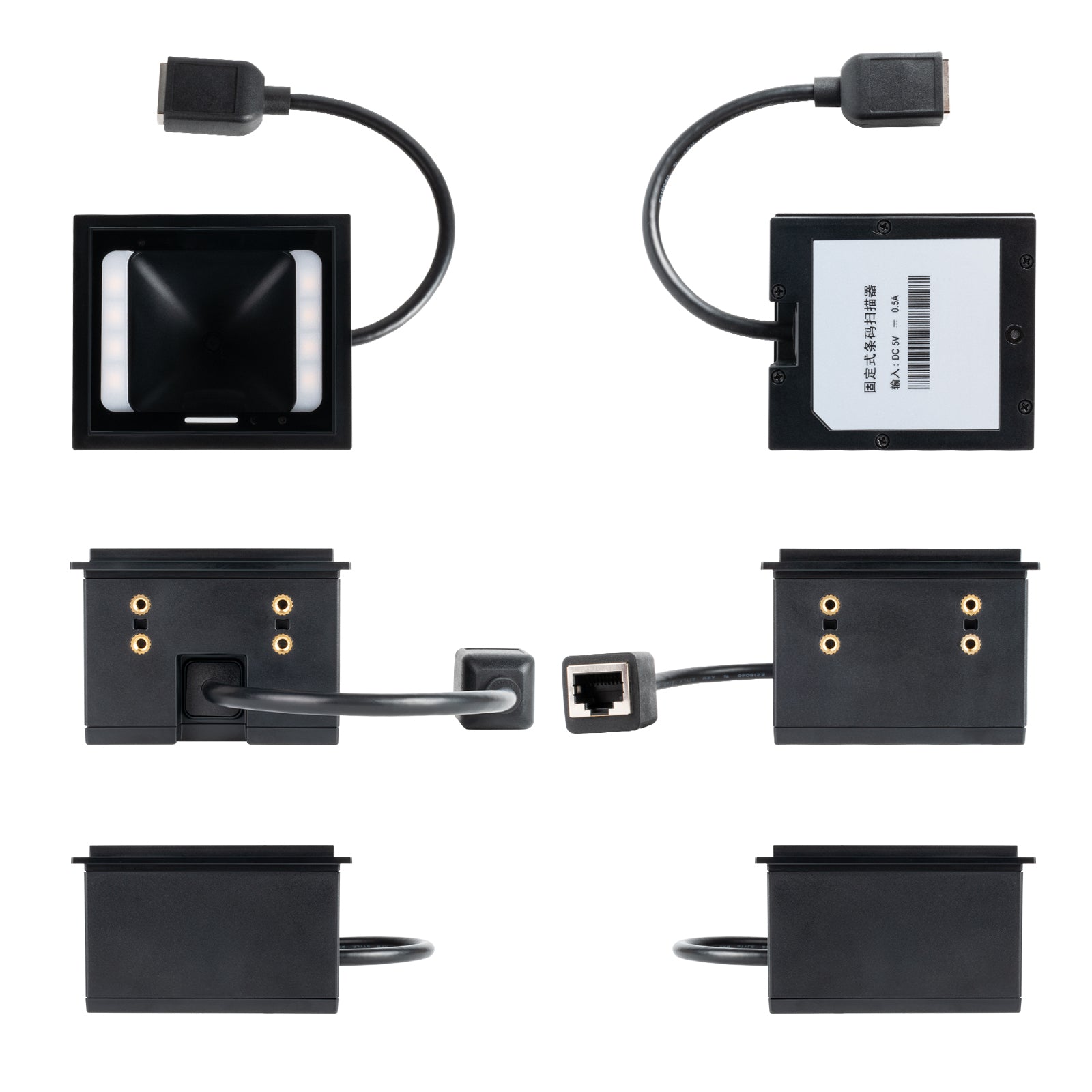

  • Fixed Barcode Scanner TD27

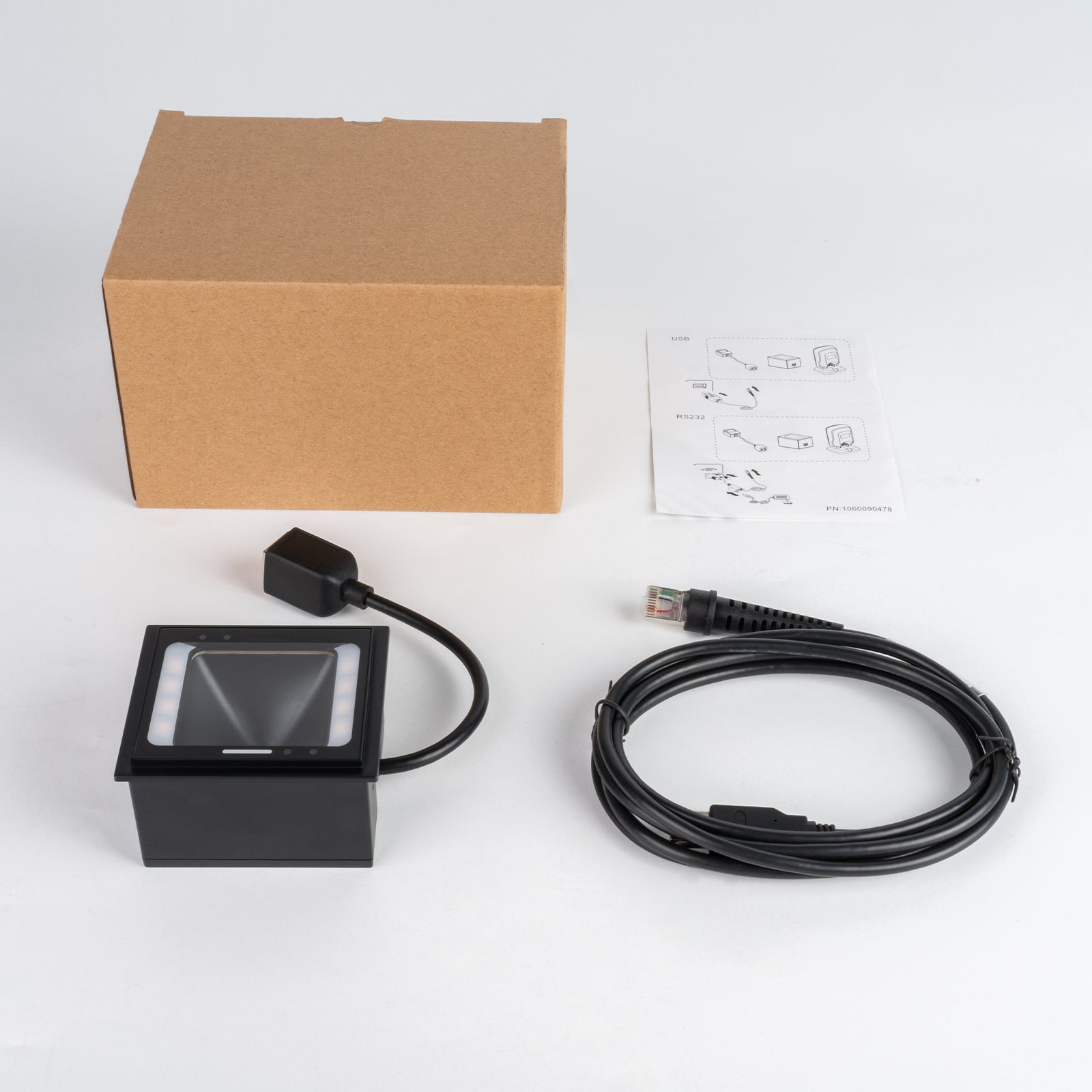

  • fixed industrial barcode scanner TD27
1 3

Effon

2D Fixed Mount Barcode Scanner & QR Code Reader TD27

2D Fixed Mount Barcode Scanner & QR Code Reader TD27

$89.00 USD
$89.00 USD
Sale Sold out
Shipping calculated at checkout.
Interface Optional

Product Overview

The TD27 2D fixed mount barcode scanner delivers fast and reliable reading of printed and on-screen barcodes, including low-quality and high-density codes. Its compact embedded design is ideal for kiosks, ticket machines, access control systems, lockers, turnstiles, and industrial equipment.

⭐ Key Features

📷 Fast 1D & 2D Barcode Reading

  • 1280 × 1088 CMOS image sensor
  • Reads QR Code, Data Matrix, PDF417, Aztec, and common 1D barcodes
  • Supports printed and mobile-screen barcodes
  • Minimum 1D resolution: ≥3 mil

⚡ Automatic Scanning

IR and light sensors automatically activate scanning when a barcode is presented, improving processing speed and user experience.

🔄 Multiple Scan Modes

  • Sense mode
  • Continuous mode
  • Command mode

🔌 Flexible Interfaces（Optional）; Standard is USB

Supports:

  • USB
  • RS-232
  • RS-485
  • Wiegand

📄 OCR Support

Supports passport OCR, Chinese ID card OCR, and China Travel Permit OCR.

📡 Optional NFC Function

Optional NFC supports card reading, sector operations, file operations, CPU cards, and APDU commands.

💪 Rugged and Reliable

  • IP67-rated sealing
  • Operating temperature: -20°C to 60°C
  • Wide 5–24V DC input
  • Beeper and multi-color LED indicator

🏭 Applications

  • Self-service kiosks
  • Access control systems
  • Ticket and payment terminals
  • Smart lockers
  • Turnstiles and gates
  • Industrial automation equipment

Specification

Model Name TD27 Fixed Mount Barcode Scanner
Dimension  78.7(W)×47.7(D)×67.7(H)mm (max.) (without cable)
Weight(g) 132g
Image Sensor
1280 * 1088 CMOS
Illumination
3000K white LED
Symbologies 1D
PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc.
Symbologies 2D

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14,
Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1
Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey,
Code 39 (Code 39 FULL ASCII), Plessey, etc

Symbologies Postal
USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS
Planet, KIX Post, Australian Postal, Japan Post.
Symbologies
OCR
Passport OCR, Chinese ID Card, China Travel Permit OCR
Scan Modes
Sense mode, Continuous mode, Command mode
Interface
RS-232, USB, RS-485, Wiegand(optional)
Operating Temperature
-20℃ to 60℃ (-4°F to 140°F)
Storage
-40℃ to 85℃ (-40°F to 185°F)
Humidity
5%~95% (non-condensing)
ESD
±15kV (air discharge) ±8kV (direct discharge)
Sealing
IP67 (not including interface)


❓ Frequently Asked Questions

Q1: Can the TD27 scan QR codes from mobile screens?

Yes. It supports both printed and on-screen 1D and 2D barcodes.

Q2: Does it support automatic scanning?

Yes. The built-in IR and light sensors support automatic barcode detection.

Q3: Which interfaces are available?

USB, RS-232, RS-485, and Wiegand interfaces are available.

Q4: Is NFC available?

Yes. NFC is available as an optional function.

📞 Request a Quote

Contact info@effon.com for pricing, samples, interface selection, and OEM/ODM services.

EFFON – Reliable Fixed Mount Barcode Scanners for Embedded Applications
