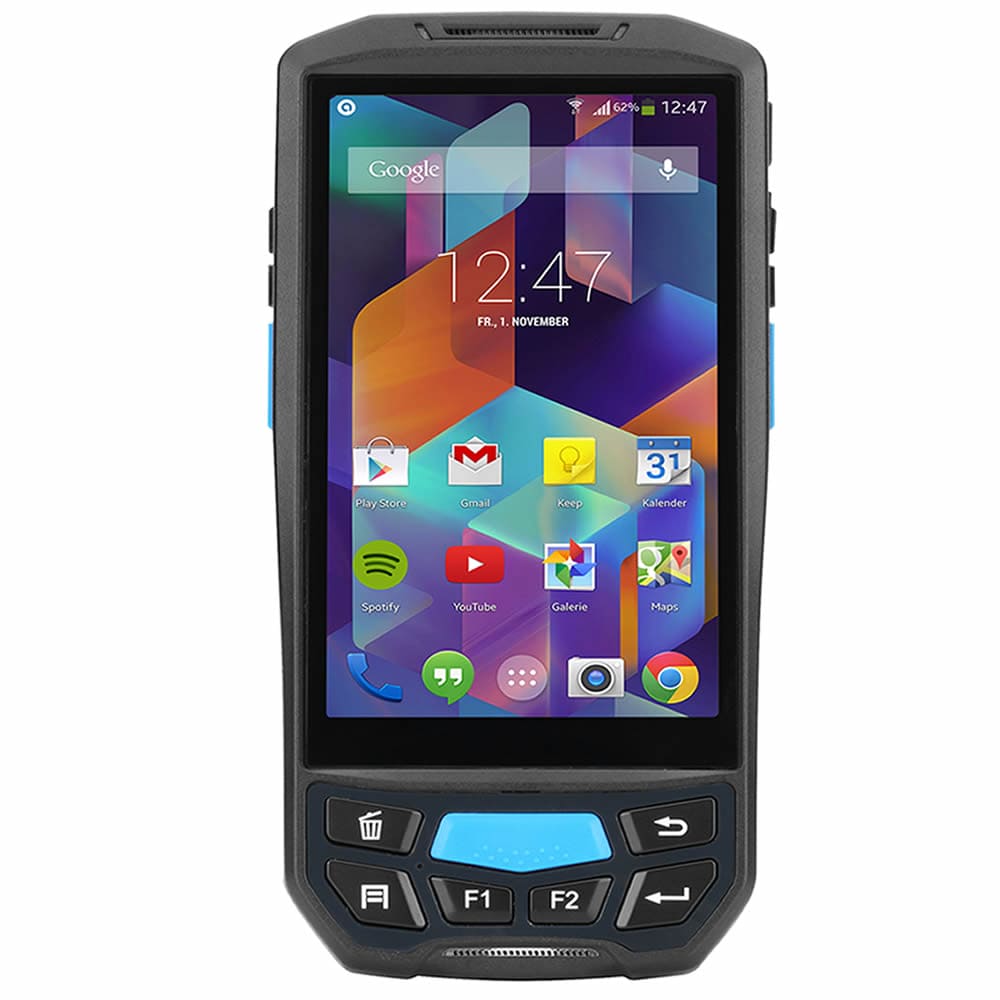

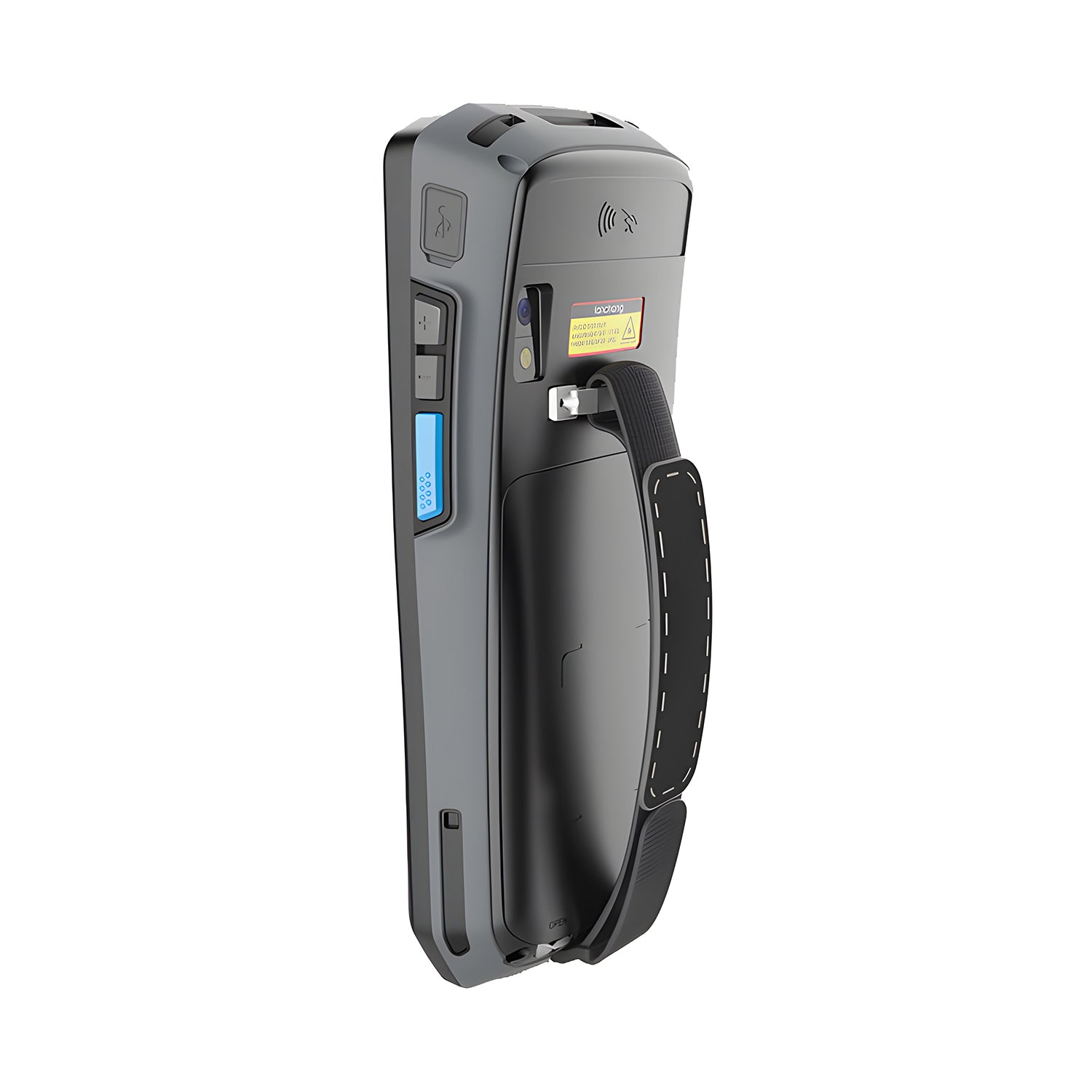

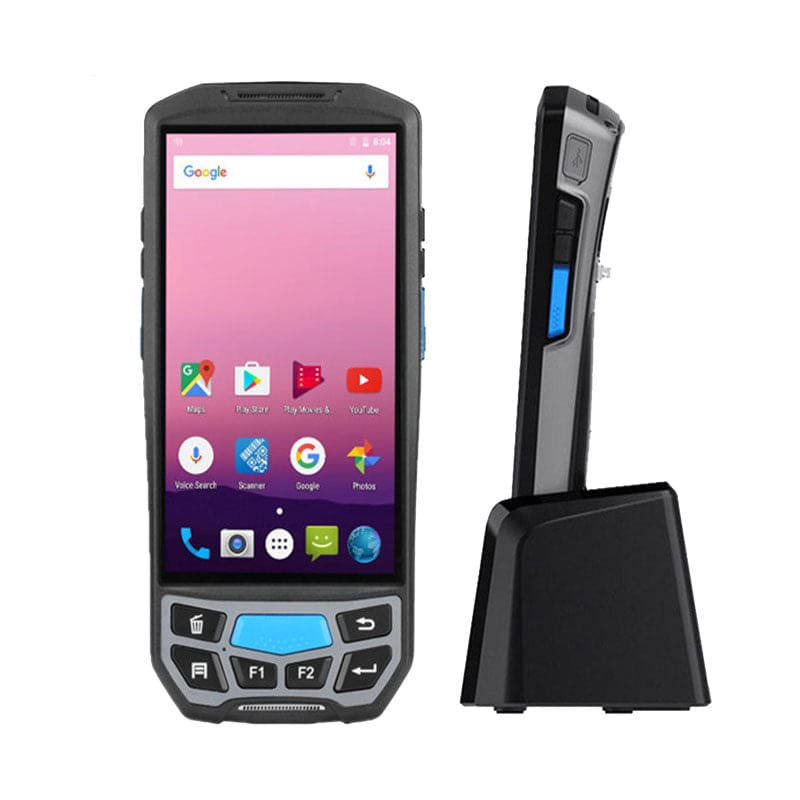

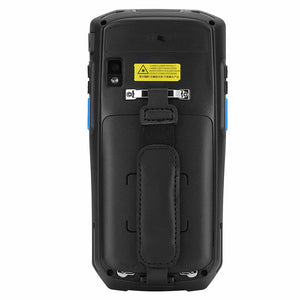

Android Handheld PDA with Honeywell 2D Barcode Scanner HS03

Android Handheld PDA with Honeywell 2D Barcode Scanner HS03

Regular price $280.00
Regular price $380.00 Sale price $280.00
Sale Sold out
Shipping calculated at checkout.

 Smart, Durable, and High-Speed PDA Handheld Device for Industrial Applications

Product Overview

The HS03 Android Handheld PDA is a rugged, high-performance handheld computer designed for mobile data collection across retail, logistics, warehousing, manufacturing, and field service industries.

Powered by a 64-bit quad-core processor and equipped with a Honeywell 2D barcode scanner, this PDA handheld device offers fast, accurate barcode reading, a durable body, and exceptional wireless communication.

Whether you need an Android computer for inventory management or a PDA computer for field operations, the HS03 delivers consistent reliability in harsh environments with an intuitive user experience.

Handheld Android Barcode ScannerAndroid Handheld Barcode Scanner PDA

Key Features of HS03 Handheld PDA

🚀 High-Speed Performance with Android 13.0

  • Runs on Android 13.0 OS with a 64-bit quad-core 2.0GHz CPU
  • Optimized for fast, stable processing and multitasking
  • Compatible with a wide range of enterprise apps and systems


🔋 Rechargeable Polymer Battery for All-Day Use

  • Equipped with a high-capacity rechargeable polymer battery
  • Delivers long-lasting power for full-shift operation without frequent recharging
  • Stable performance for on-the-go usage in the field

📷 Advanced Barcode Scanning (Honeywell 2D Engine)

  • Integrated Honeywell scan engine supports 1D & 2D barcode scanning
  • Excellent decoding performance even with damaged, curved, or low-quality codes


Ergonomic, Slim Design

  • Slim and lightweight form factor
  • 5.0-inch HD IPS display (720×1280) is glove-friendly and water-resistant
  • Comfortable to hold for long hours in warehouse or retail environments


🌐 Multiple Data Transmission Options (Optional)

  • Supports 2G, 3G, 4G LTE, WiFi, Bluetooth, 433M LoRa, ZigBee, and more
  • Ideal for real-time communication and IoT applications


💪 Industrial-Grade Durability

  • IP66 protection against dust and water
  • Survives 1.2-meter drops and 1000 tumble cycles (0.5m range)
  • Designed for rugged environments like manufacturing floors and logistics centers

Android PDA RFID

📸 8W HD Camera with Autofocus

  • Rear 800W camera enables users to capture high-quality images and videos
  • Great for delivery proof, equipment documentation, and on-site reporting


📡 Multi-Mode Positioning & Connectivity

  • Built-in GPS, A-GPS, and Beidou Compass for precise location tracking
  • Supports 802.11 a/b/g/n WiFi, maintaining stable connections in dynamic workspaces


Technical Specifications of HS03 Handheld PDA

Model Name HS03 Android Handheld PDA
Scan Engines  2D Honeywell 6703
Weight(g) <500g
Dimension
178mm x78mm x24mm
Display
5.0 inch display with resolution 720 x1280
Battery capacity
Rechargeable polymer battery 3.7 V 4800mAh, removable
Working Time >12 hours
Charging Time 2-3 hours
Scanning Type 1D:
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,
Chinese 2 of 5, Codabar, MSI, RSS,etc.
Scanning Type 2D:
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR
code, Aztec, MaxiCode, HanXi,etc
Camera
Rear camera: 8MP (13MP Optional) Support auto focus, Flash, etc.
Expansion Card slot
Micro SIM x1, TF x1, (PSAM x2 Optional)
Communication interface
Type-C USB x1, Support OTG function
Keypad
13 soft silicone buttons
Operating Temperature
-20°C to 55°C
Storage
-40°C to 70°C
Drop specification
6 sides Supports 1.5 meters drops on the marble within the operating temperature
Rolling test
0.5m rolling for 6 sides, can still work steadily
IP Rating
IP66



📦Package Contents

  • 1 × HS03 Handheld P
  • DA with Honeywell 2D Scanner

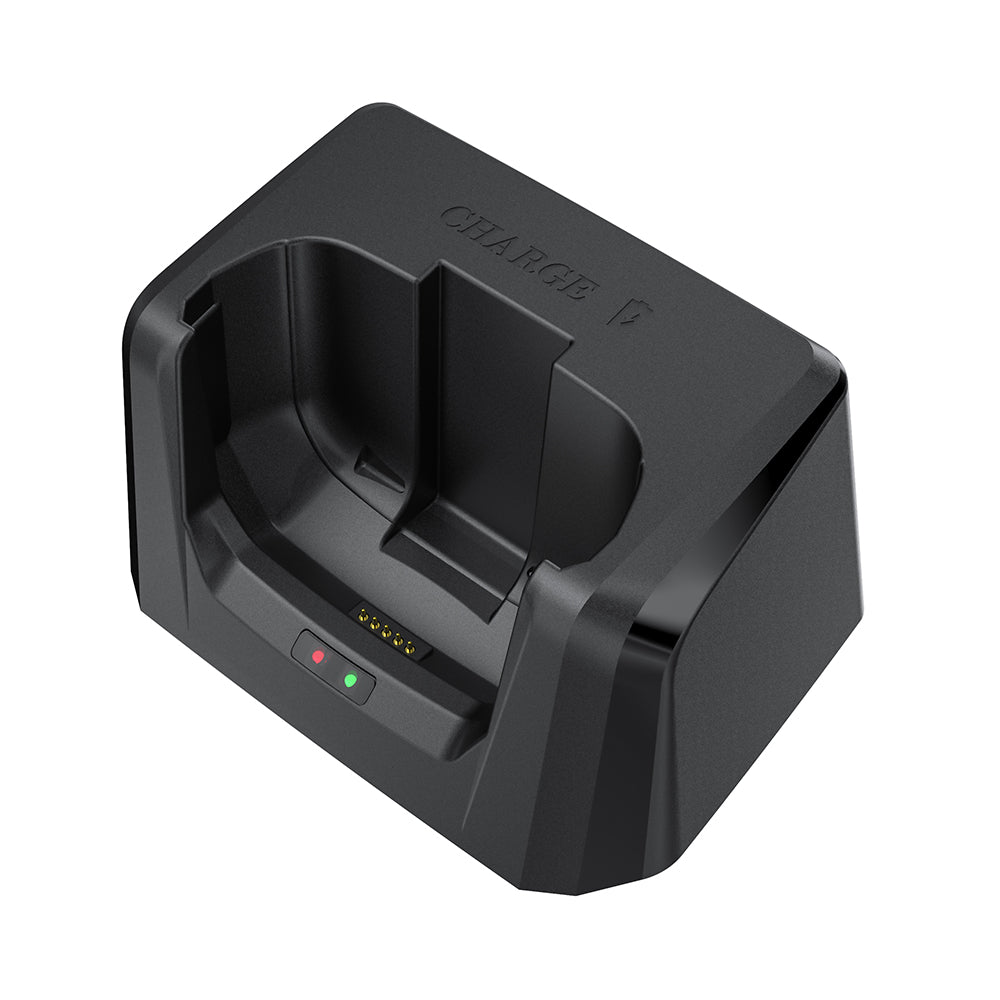

  • 1 × Charging Docks
  • 1 × EU/US Adaptor
  • 1 × User Manual



🏭 Ideal Applications

📦 Warehouse Inventory Management

🚚 Logistics & Delivery Tracking

🏬 Retail & Chain Store Operations

🧾 Field Service & Inspection

🏥 Healthcare Asset Scanning

🏗️ Construction & Utility Monitoring



Frequently Asked Questions

Q1: What makes HS03 different from other Android handheld computers?
A: HS03 combines a Honeywell barcode engine, Android OS, and enterprise-grade durability, making it an ideal solution for rugged, mobile applications.

Q2: Can the screen be used with gloves or in wet conditions?
A: Yes. The 5.0" touchscreen is designed for glove and water-friendly operation.

Q3: Is this handheld PDA suitable for use in outdoor environments?
A: Absolutely. With IP67 sealing, drop resistance, and GPS support, it’s built for field use.

Q4: What wireless options are supported?
A: HS03 supports 4G LTE, WiFi, Bluetooth, and optionally ZigBee and LoRa for extended IoT integration.



📞 Need a Quote or Custom Configuration?

Looking for a rugged, high-performance handheld PDA for your business?
👉 Contact us at Info@effon.com for pricing, demo requests, or OEM solutions.

EFFON – Reliable Android Handheld Computers for Mobile Data Collection
