BFP1 Charging Dock with Bluetooth Adapter for NS02 and EF02 Scanner

The BFP1 Charging Dock is an advanced docking station designed for EFFON NS02 Glove Scanner and EF02 Ring Scanner. It combines charging functionality with a built-in Bluetooth communication adapter, enabling fast device pairing and flexible data transmission modes.

This makes BFP1 not only a charging dock, but also a wireless communication hub for enterprise scanning systems.

Key Features

• Designed for EFFON NS02 & EF02 wearable scanners
• Built-in Bluetooth adapter for fast wireless connection
• Supports charging of scanner and spare battery
• Stable industrial docking structure
• Supports multiple connection modes (HID / SPP / Virtual COM)
• Plug-and-play operation for enterprise systems
• Supports up to 6 scanners connected simultaneously per dock
• Improves warehouse scanning system integration efficiency

Charging Function

Single BFP1 Charging Dock

• Charges 1 scanner + 1 spare battery
• Includes Bluetooth adapter functionality

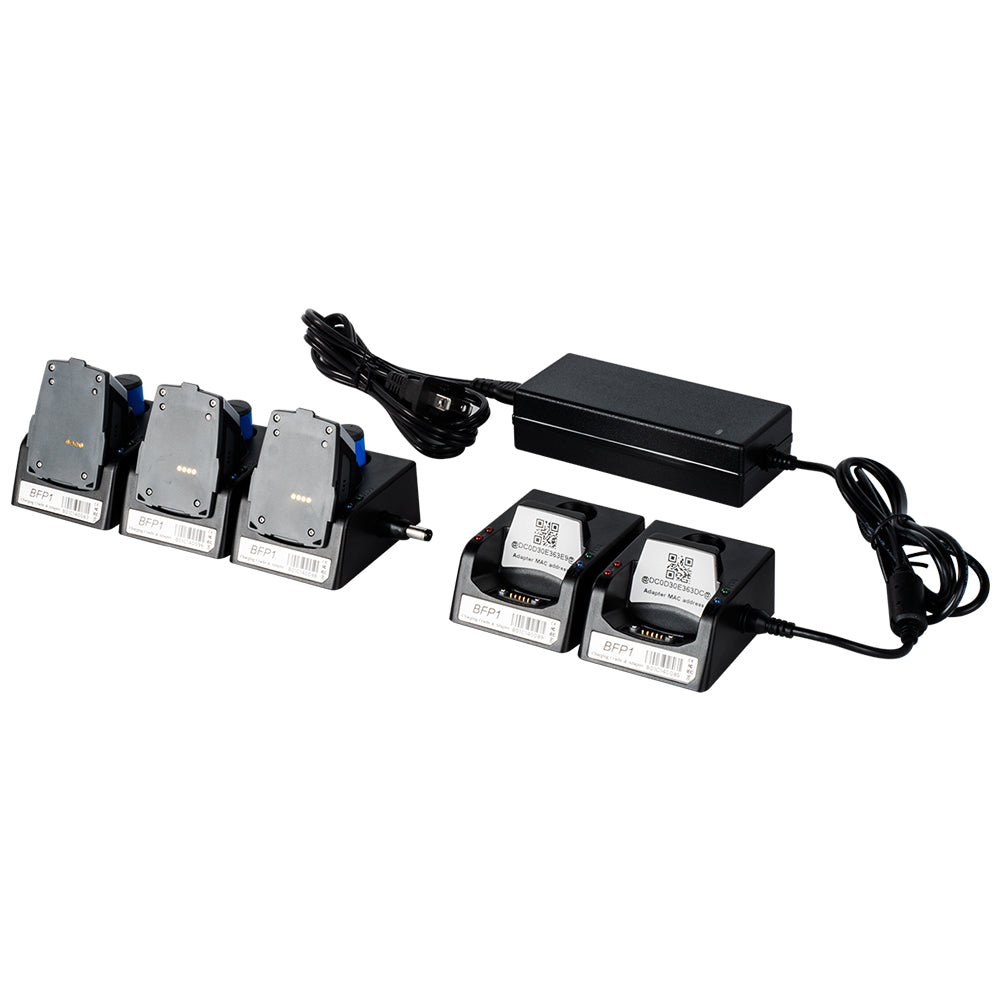

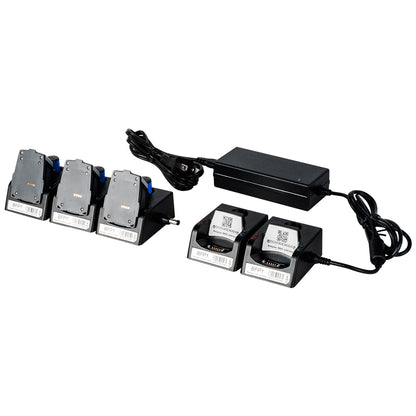

5-slot Charging System (BFP2-based parallel system)

• Charges 5 × NS02 / EF02 scanners
• Charges 5 spare batteries
• Includes power supply unit

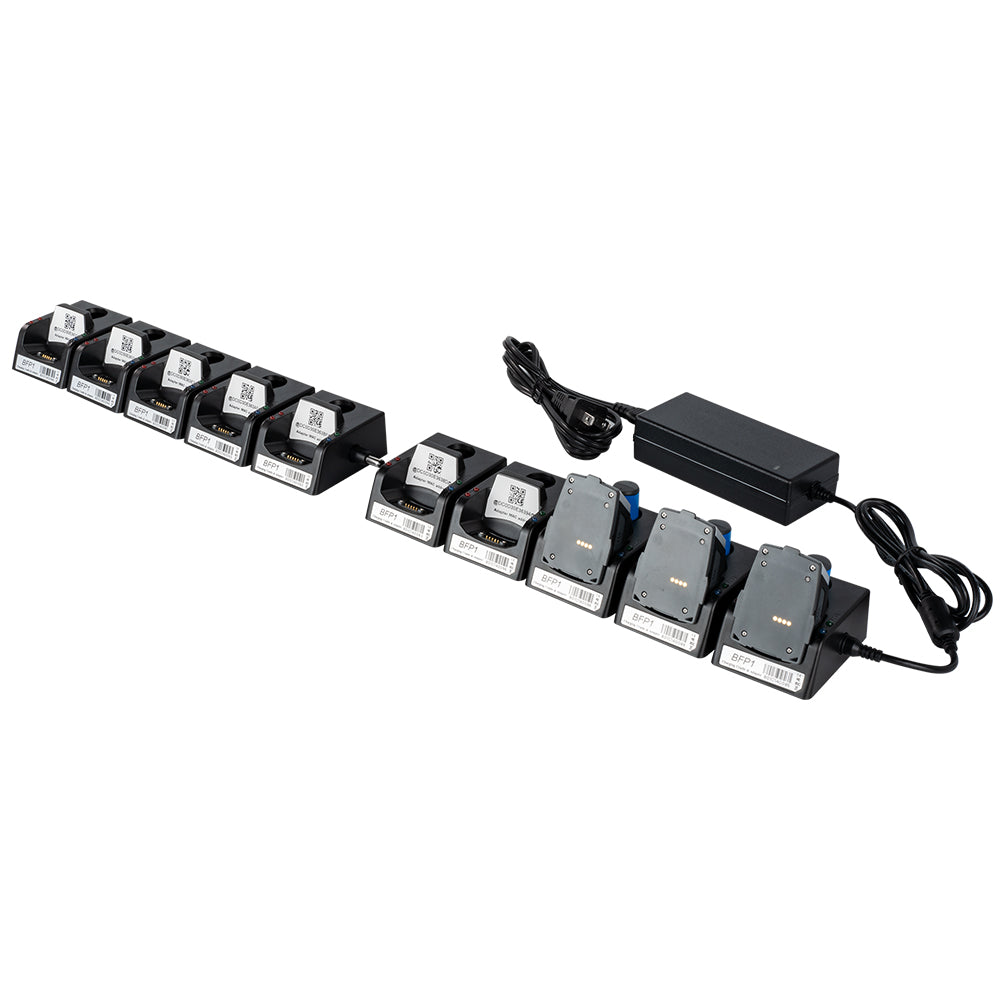

10-slot Charging System (BFP2-based parallel system)

• Charges 10 × NS02 / EF02 scanners
• Charges 10 spare batteries
• Includes industrial power supply

Bluetooth Connection System

The BFP1 dock enables advanced wireless communication between scanners and computers.

Pairing Method

1. Set NS02 / EF02 scanner to SPP mode
2. Scan the pairing barcode on the BFP1 dock
3. Device connects automatically via Bluetooth adapter

Connection Modes

1. HID Mode (Plug and Play)

• Works like a keyboard input device
• No driver installation required
• Data directly input into any software or Excel

2. Virtual COM Port Mode (SPP Mode)

• Scanner outputs data via serial communication
• Requires serial port software or middleware
• Suitable for warehouse management systems (WMS / ERP)

Multi-Device Support

A single BFP1 dock supports:

• Up to 6 NS02 / EF02 scanners connected simultaneously
• Real-time data transmission to PC system
• Stable multi-device wireless management
