MS4200 2D Fixed Mount Barcode Scanner – Compact OEM Kiosk Solution
Embedded Design | Auto Scanning | USB, RS232 & Virtual COM Support
Product Overview
The MS4200 Fixed Mount 2D Barcode Scanner is a compact, high-speed barcode reader built for OEM and embedded applications.
Engineered with a tiny form factor, this scanner is ideal for integration into self-service kiosks, ticketing terminals, airport check-in machines, and reverse vending machines.
With IR/light auto-trigger technology, support for USB, USB Virtual COM Port, and RS232, the MS4200 offers flexible connectivity and fast, hands-free barcode scanning for both 1D and QR codes.
Whether it’s enhancing your airport self-service check-in experience or speeding up retail automation, the MS4200 delivers reliable scanning in a compact package.
⭐ Key Features
🔍 High-Speed Auto Scanning with IR/Light Trigger
- Automatically detects and scans 1D and 2D barcodes
- Supports QR code, PDF417, Data Matrix, and more
- Fast response time ensures smooth user interactions
📏 Tiny, Embedded Form Factor
- Designed for seamless integration into kiosks and vending machines
- Ideal for compact spaces with limited mounting area
🔌 Flexible Interface Support
- Supports USB, USB Virtual COM Port, and RS232 interfaces
- Plug-and-play setup with no driver installation required
🛠️ Kiosk-Ready Design
- Perfect for airport self-check-in terminals, ticket dispensers, vending machines, and access control systems
Technical Specifications
| Model Name | MS4100 2D Fixed Mount Barcode Scanner |
| Dimension |
49mm×38mm×20mm（L×H×D）
|
| Weight(g) | 37g |
|
Voltage/Current
|
5 VDC +/-10% @ 400 mA
|
| Resolution |
640 pixels (H)x 480 pixels (V)
|
|
Light Source:
|
Aiming: 617 nm LED; illumina�on: 6500K LED
|
|
Interfaces Supported
|
USB, RS232
|
| Scanning Type | 1D: UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
|
| Scanning Type | 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,
etc.
|
|
Operating Temperature
|
0°C to 50°C
|
|
Storage
|
-40°C to 70°C
|
|
Shock specifications
|
Designed to withstand 1.5m(5’) drops
|
|
Ambient light immunity
|
100.000 Lux
|

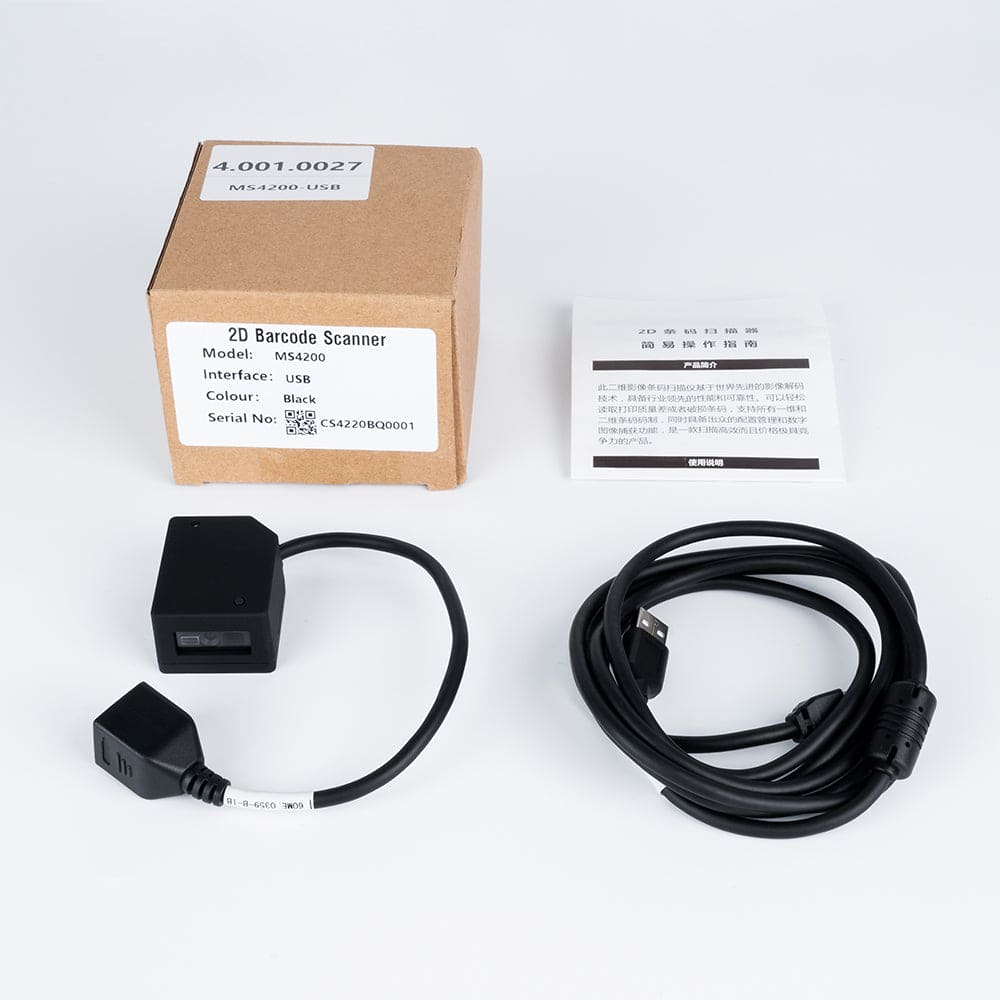

📦 Package Contents
- 1x MS4200 Fixed Mount Barcode Scanner
- 1x USB Cable
- 1x User Manual
🧰 Applications
✈️ Airport Self-Service Check-in Kiosks
🧾 Ticketing Machines – For public transit, theaters, parking
🛍️ Retail & Vending Kiosks – Barcode scanning for product lookup or payment
🚪 Access Control Panels – Badge scanning, ID verification
🔄 Reverse Vending Machines – Accept barcoded items for return or recycling
🏥 Healthcare Devices – For patient check-in or lab automation
Frequently Asked Questions
Q1: Can the MS4200 scan codes from a smartphone screen?
A: Yes, the advanced sensor supports scanning from paper, LCD displays, and mobile phone screens.
Q2: What’s the difference between USB and USB Virtual COM?
A: USB connects as a HID device, while USB Virtual COM Port allows communication as a serial device for applications needing COM-based input.
Q3: Is the scanner easy to install in custom kiosks?
A: Absolutely. The tiny size and fixed mount design make it ideal for embedded integration.
Q4: Do I need to install drivers?
A: No. It is completely plug-and-play across most operating systems.
