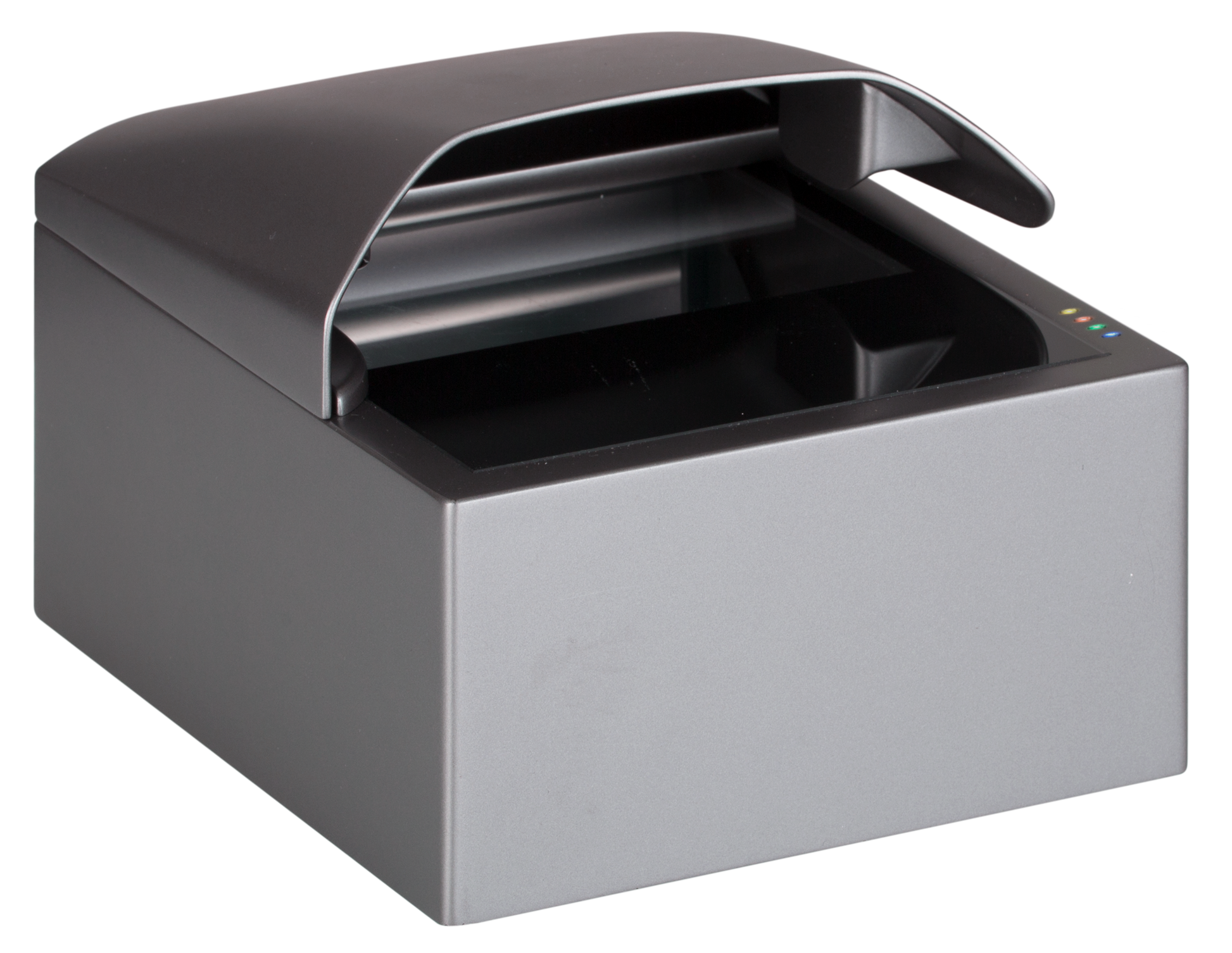

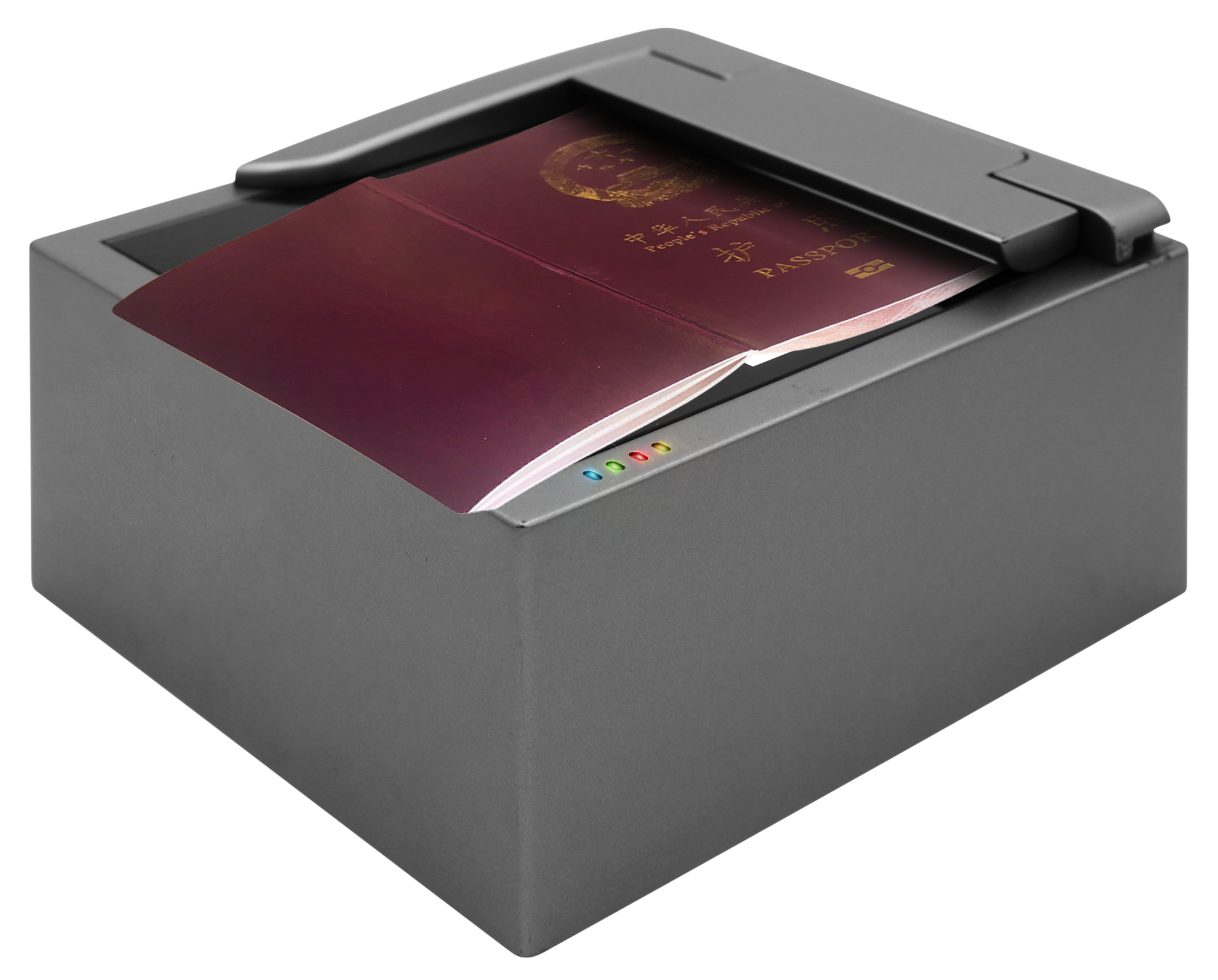

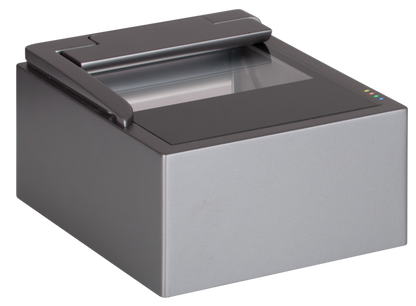

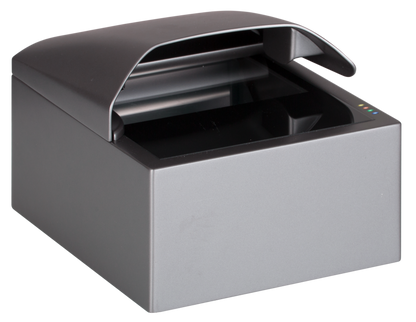

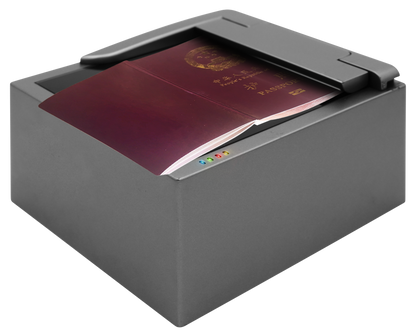

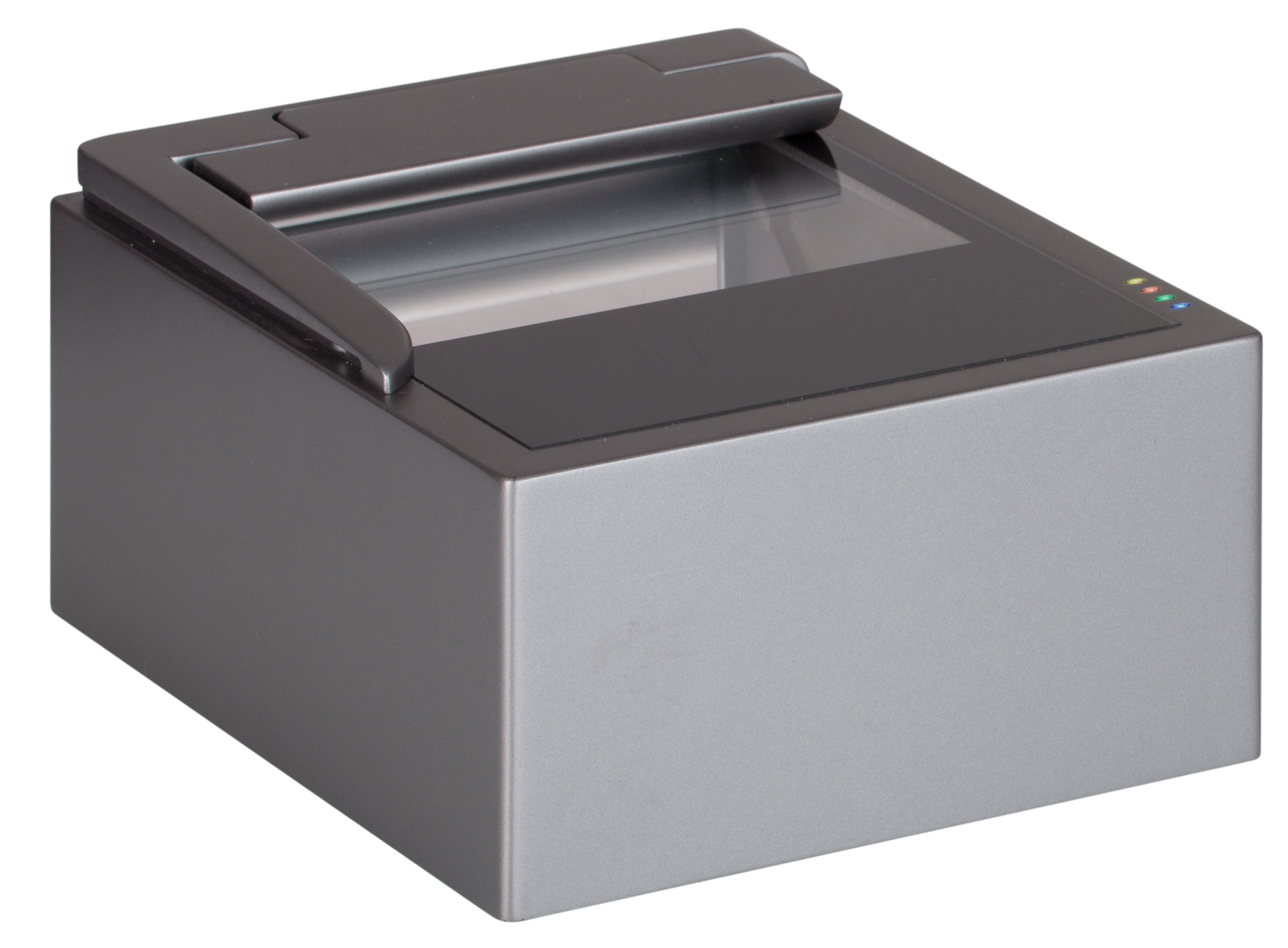

Full-Page Passport and ID Document Reader with MRZ OCR Scanner TD25

Product Description

The EFFON TD25 is a professional full-page passport and identity document reader designed for fast and accurate document data capture.

Equipped with a 5-megapixel CMOS camera and a high-precision OCR engine, the TD25 can capture the complete data page and extract information from MRZ, VIZ, passports, ID cards, visas, travel documents, and optional 1D and 2D barcodes.

With automatic document detection, auto-trigger scanning, visible-light imaging, and infrared imaging, the TD25 provides a convenient document-reading solution for border control, airports, hotels, banks, embassies, police stations, and other identity verification applications.

A software development kit is available to support integration into customer management systems, identity verification platforms, access-control systems, and self-service terminals.

Key Features

• Full-page passport and ID document scanning
• 5.0-megapixel CMOS image sensor
• High-resolution 500 DPI document imaging
• Supports MRZ and VIZ data recognition
• Reads passports, e-passports, visas, ID cards, and travel documents
• ICAO Doc 9303 compliant document recognition
• Visible-light and infrared 850 nm imaging
• Automatic document sensing and scanning
• Automatic travel document detection and classification
• OCR processing time of 1 second or less
• Optional 1D and 2D barcode reading
• USB 2.0 connection
• Integrated USB 2.0 hub for external peripherals
• SDK available for system integration
• Four status indicator LEDs
• Four user-definable buttons

Supported Documents

The TD25 can be configured to recognize multiple identity and travel documents, including:

• Passports
• Electronic passports
• Visas
• National identity cards
• Driving licences
• Travel permits
• Entry and exit documents
• Machine-readable travel documents
• Documents containing MRZ, VIZ, 1D barcodes, or 2D barcodes

Document support may vary according to the selected OCR software package and country-specific integration requirements. Please contact us before ordering to confirm the documents you need to read.

Applications

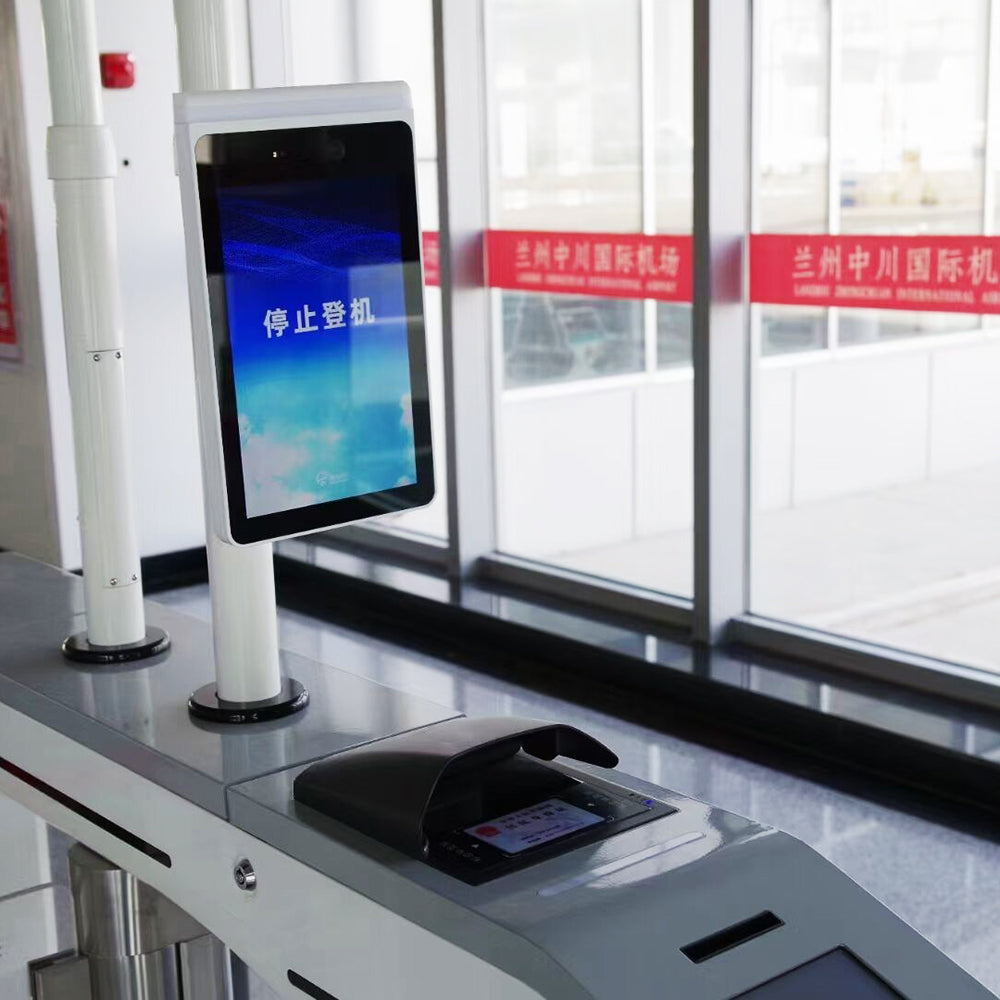

• Airports and airline check-in counters
• Border control and immigration
• Embassies and consulates
• Customs and frontier inspection
• Public security departments
• Police stations
• Hotels and guest registration
• Banks and financial institutions
• Travel agencies
• Railway and bus terminals

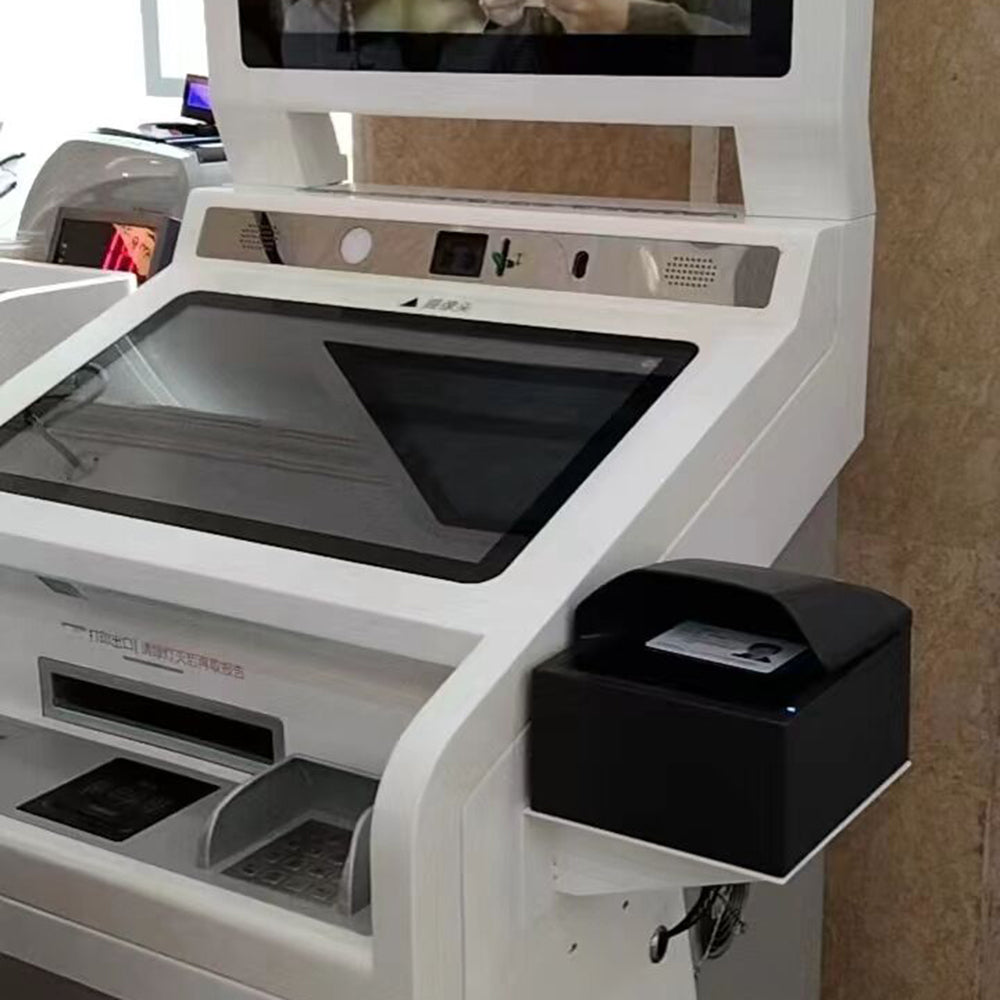

• Access-control and visitor-management systems
• Identity verification and KYC projects

FAQ

Does the TD25 read the entire passport data page?

Yes. The TD25 captures a full-page image and can extract information from the complete data page, MRZ, and VIZ areas.

Can it read electronic passports?

It can recognize the printed data page of an electronic passport. Please confirm separately whether RFID chip reading is required, as this depends on the selected configuration.

Does it support MRZ recognition?

Yes. It supports MRZ recognition for compatible passports, visas, and machine-readable travel documents.

Can it read ID cards and driving licences?

Yes, but supported document types and fields depend on the OCR software package and country-specific document templates.

Does it support barcode reading?

Optional 1D and 2D barcode-reading functions are available.

How fast is document recognition?

OCR processing takes approximately one second or less under normal operating conditions.

Is an SDK included?

An SDK can be provided for integration and includes development libraries, demonstrations, and sample programs for supported programming environments.

Can it work directly after connecting it to a computer?

The device requires compatible software or integration with the supplied SDK. Please confirm your operating system and application requirements before ordering.

Can you customize the software or output format?

Yes. Customized recognition functions, data fields, output formats, and system integration can be evaluated according to the project requirements.
