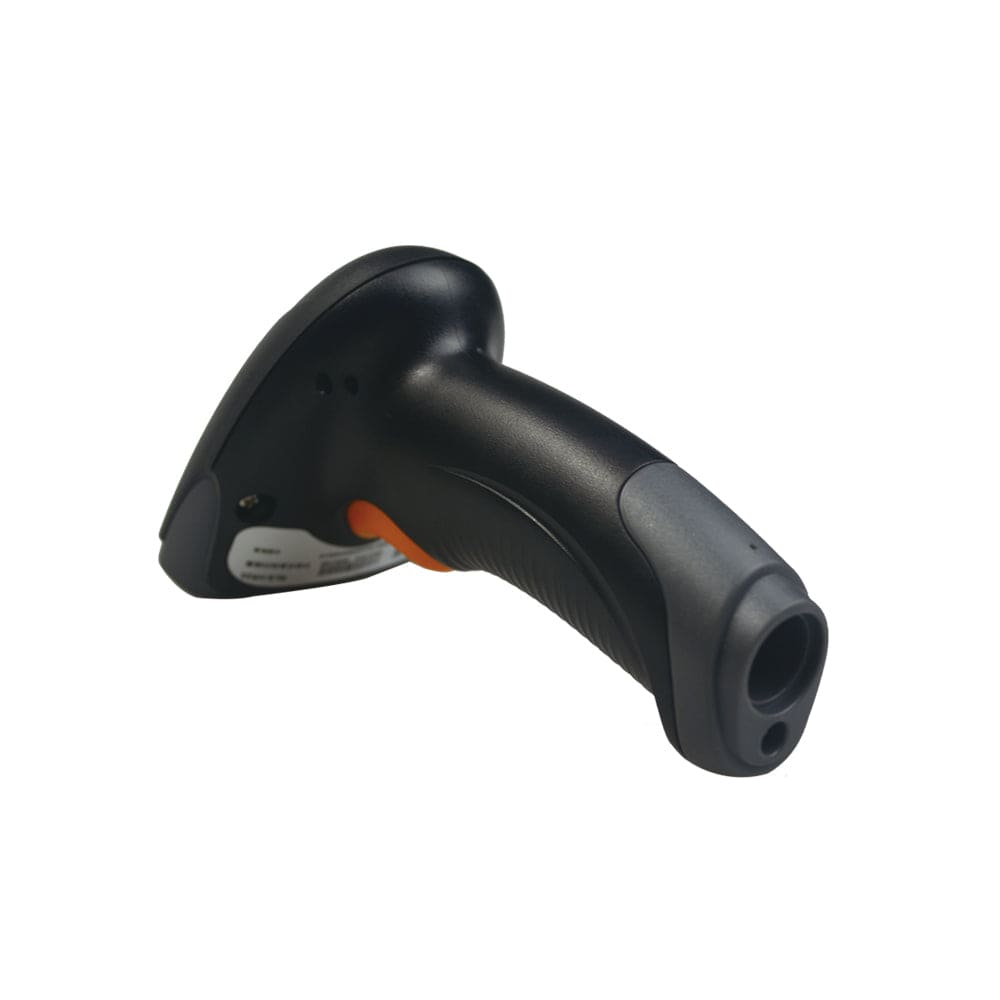

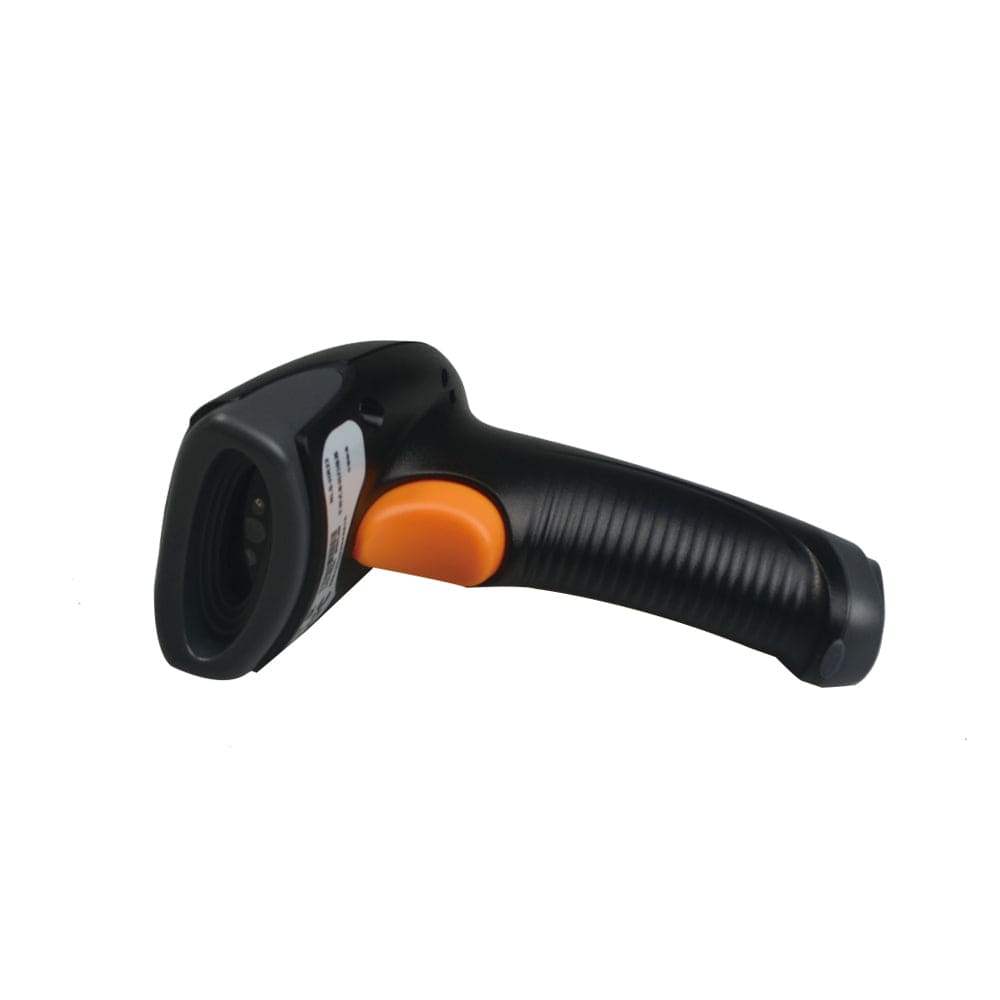

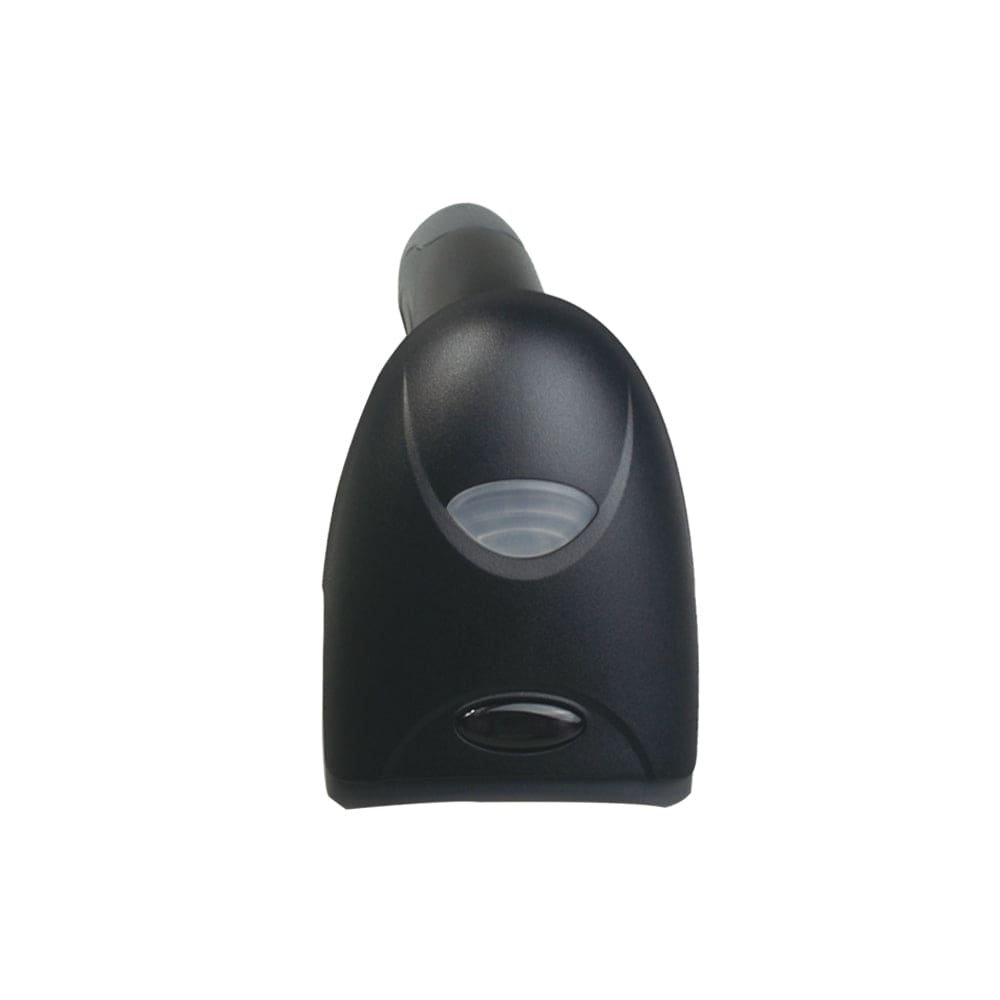

Hanheld 2D Barcode Scanner HS22

· Symbologies : 1D/2D

· Interface : USB/RS232

· Wireless : BLUETOOTH

· Category : Ideal For O2O payment, O2O card issue verification

· IP Sealing :IP42 , 1.2M Drop Test


Collections: All products, Handheld Barcode Scanner

Type: Unknown Type

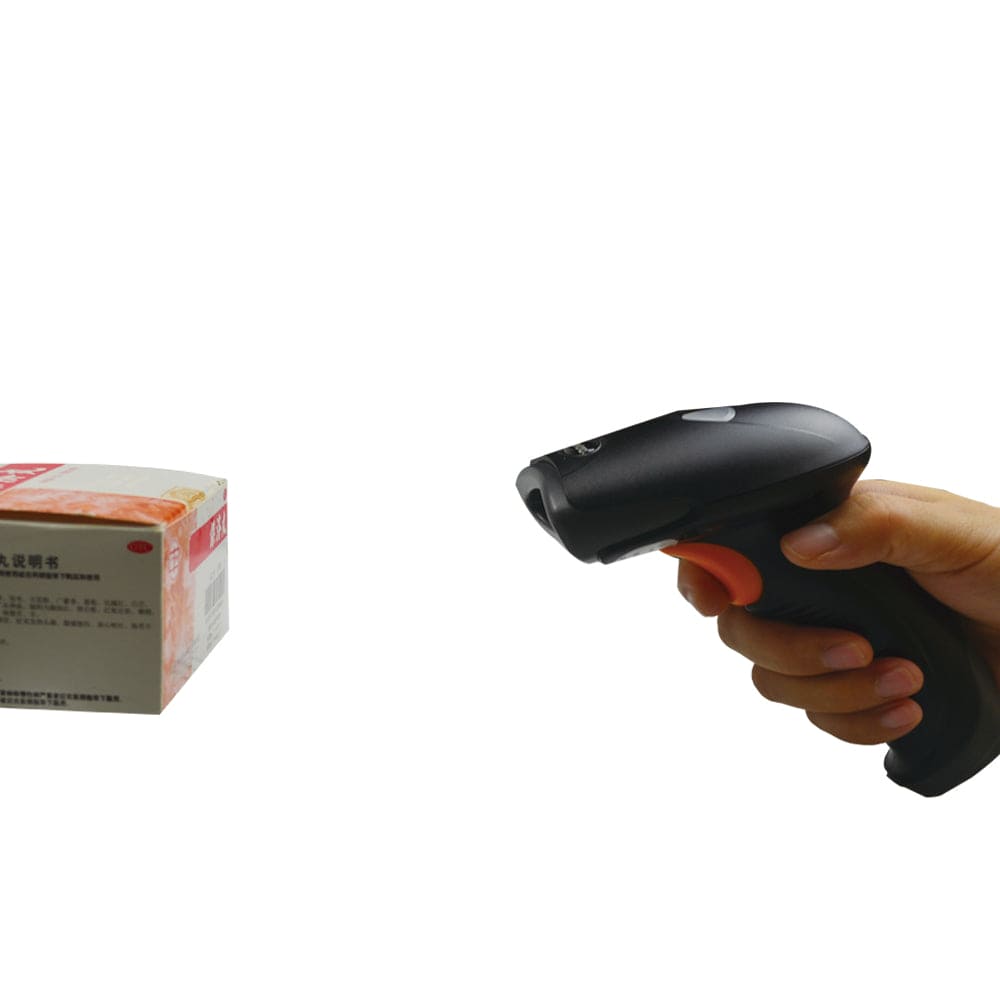

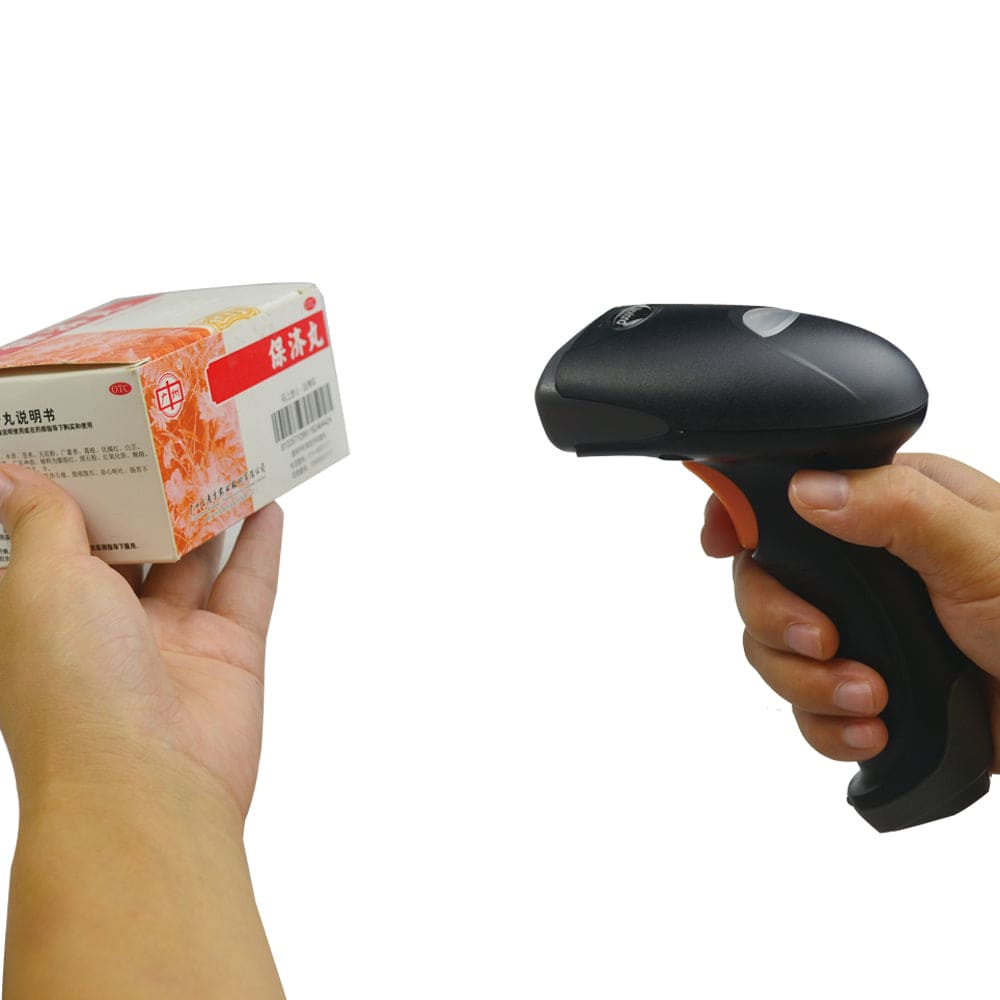

The HS22 can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen. It not only ensures operator comfort and productivity for intensive hand-held scanning but also meets the aesthetic needs of the O2O era.
The HS22 provides a cost-effective data capture solution that allows customers to enjoy the
capabilities of 2D barcode scanner for the price of 1D scanner.

Technical parameters

Dimensions :(L×W×H) 145×101×68mm

Weight : 165g

Symbologies : 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,050, 080, 100, 140)

1D Code 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, Febraban, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Code 32, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)

Resolution : 3mil

Typical Depth of Field

EAN-13 40mm-355mm (13mil)

Code 39 28mm-155mm (5mil)

PDF 417 28mm-95mm (6.67mil)

Data Matrix 25mm-95mm (10mil)

QR 25mm-150mm (15mil)

Drop : 1.2m

Sealing : IP42

Certifications FCC Part15 Class B,CE EMC Class B

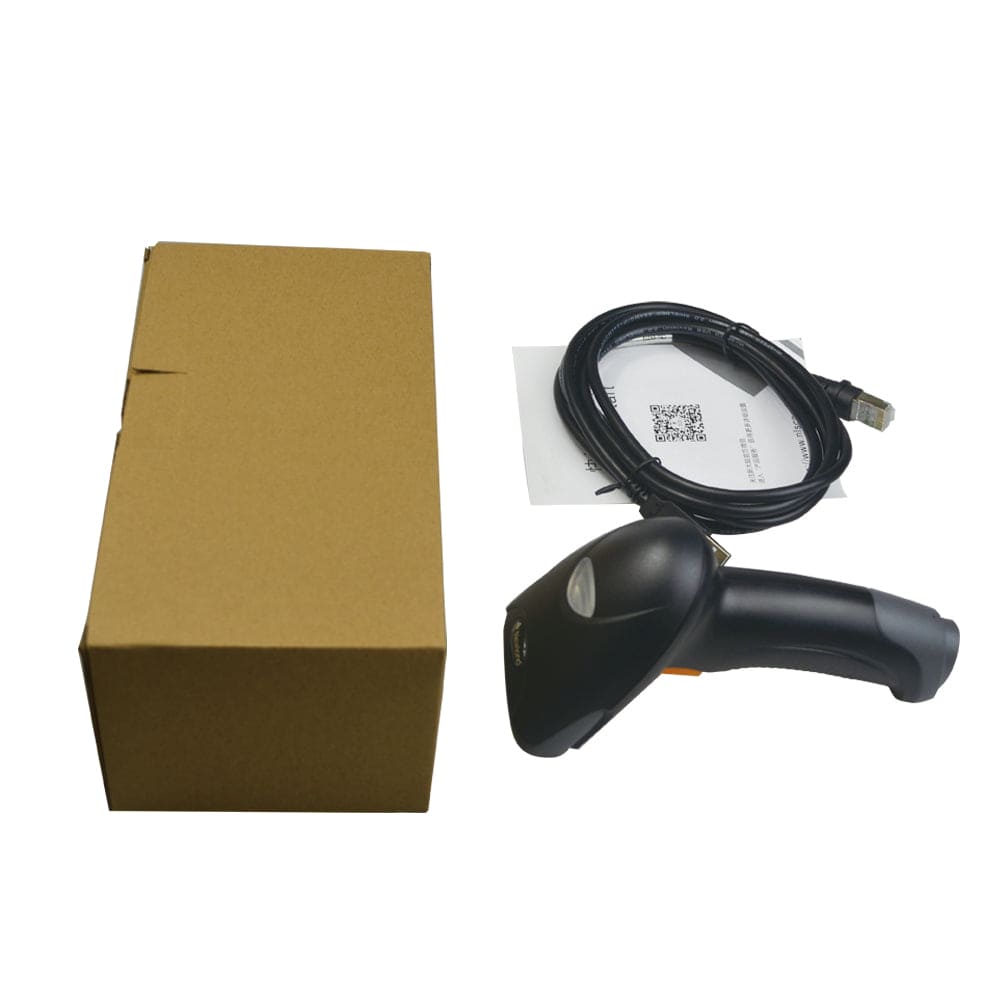

Accessories:
