Industrial Barcode Scanner Wired 2D Barcode Reader TH25
Industrial Barcode Scanner Wired 2D Barcode Reader TH25
Couldn't load pickup availability

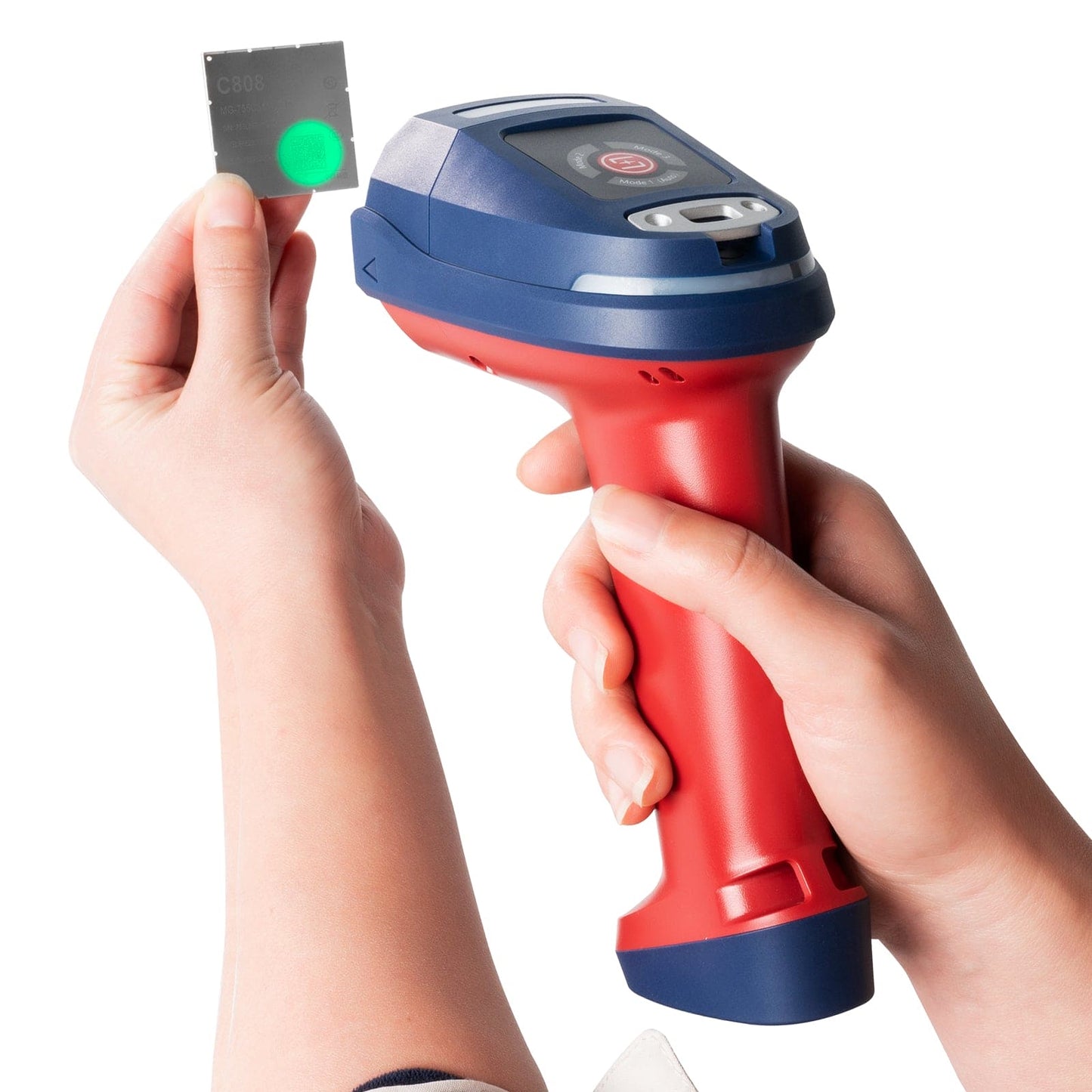

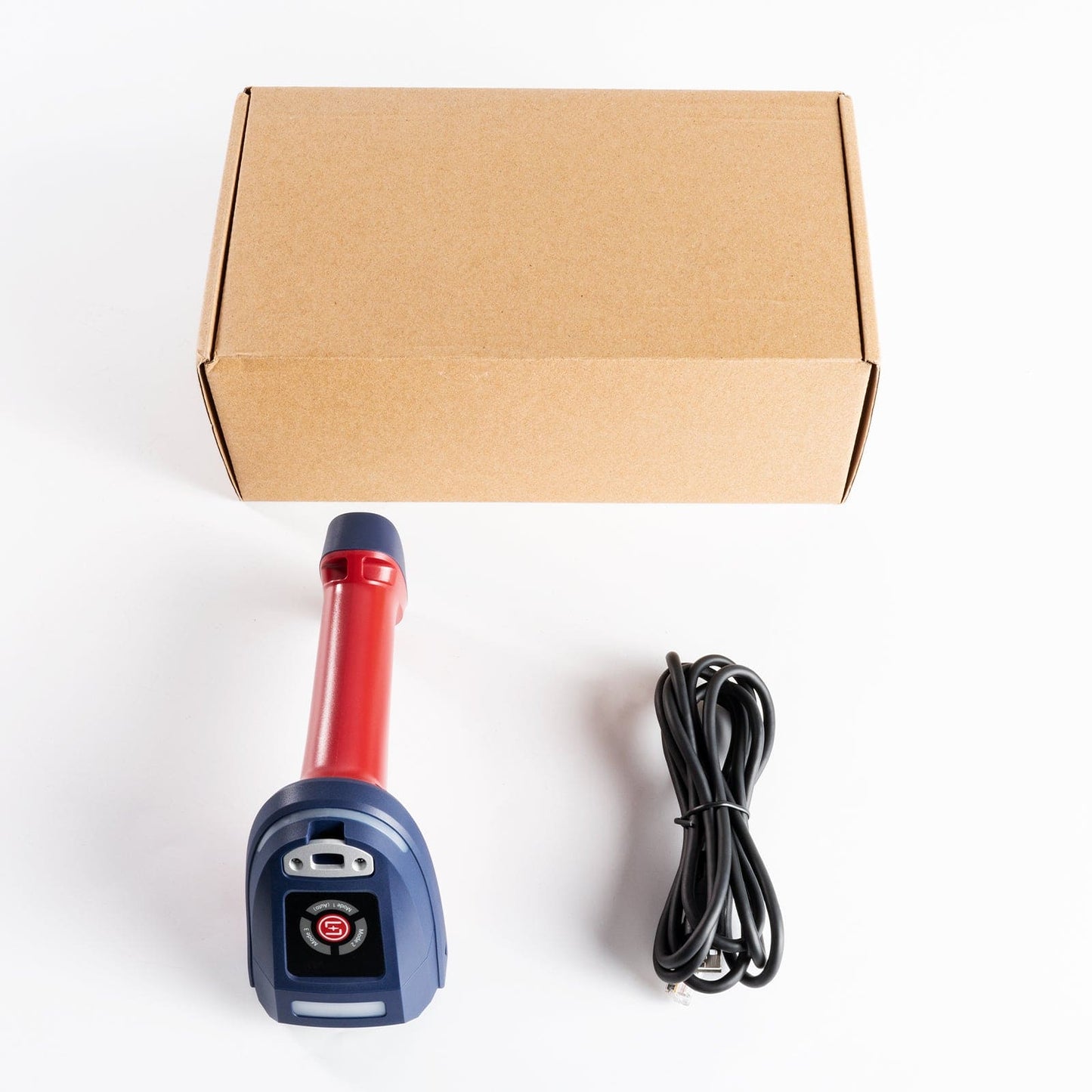

TH25 Industrial Barcode Scanner – Wired 2D DPM Code Reader
Rugged Design | High-Speed DPM Scanning | IP65 Protection
Product Overview
The TH25 Industrial 2D Barcode Scanner is a high-performance wired barcode reader engineered to decode even the most challenging Direct Part Marking (DPM) codes in demanding industrial environments.
Featuring multi-light source technology, high-precision aiming, and robust IP65 protection, the TH25 is built to thrive in tough production lines, logistics hubs, and manufacturing plants.
Designed for maximum accuracy and durability, the TH25 delivers consistent and fast decoding of engraved, etched, printed, or laser-marked barcodes, regardless of material surface or lighting condition.
⭐ Key Features
🧠 Industrial-Grade DPM Code Decoding
- Reads laser-engraved, dot peen, inkjet, or etched DPM codes from metal, plastic, glass, and more
- Handles low-contrast and worn codes with ease
💡 Multi-Light Source Scanning Technology
- Automatically adjusts lighting to adapt to different surfaces and materials
- Improves readability on reflective or curved items
🎯 High-Precision Targeting System
- Pinpoint aiming makes it easy to scan small, dense, or closely packed barcodes
- Reduces misreads and improves operator efficiency
⚡ Superpower Decoding & High-Speed Performance
- Lightning-fast scan engine ensures high-speed data capture in real time
- Built for industrial automation, production lines, and rapid inspection stations
🧱 Durable & Rugged Build
- IP65 protection rating for water, dust, and oil resistance
- Drop resistance up to 1.8 meters (tested on concrete floor, 30 drops)
🧯 ESD Protection Built-In
- Built-in Electrostatic Discharge protection ensures safe operation around sensitive electronics
Technical Specifications
| Model Name | TH25 Industrial Barcode Scanner |
| Dimension | 92mm x 75mm x 188mm |
| Weight(g) |
215.4g
|
|
Housing material
|
PC, TPU
|
| Resolution |
1280 x 1080(Pixels), 60FPS
|
|
Power consumption
|
2.5W max
|
|
Power supply
|
5VDC
|
|
Light source
|
White point light source, red low angle ring light, red and blue dome light
|
|
Interfaces supported
|
RS232，USB COM，USB HID Keyboard
|
| Scanning Type | 1D: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC
|
| Scanning Type | 2D: QR, DataMatrix, PDF417, Aztec
|
|
Operating Temperature
|
0°C to 50°C
|
|
Storage
|
-20°C to 70°C
|
|
Shock specifications
|
1.8 meter concrete floor, free fall 30 reps
|
|
ESD protection
|
Contact Discharge:+8KV,Air Discharge:+15KV,Coupling Discharge:+8KV
|
🏭 Ideal Applications
- Automotive and Aerospace Parts Tracking
- Electronic Component Inspection
- Medical Device Manufacturing
- Metal Engraved Product Traceability
- Tool and Asset Lifecycle Management
- Industrial Warehousing & Production Lines
❓ Frequently Asked Questions
Q1: Can the TH25 Industrial Barcode Scanner scan DPM codes on metal parts?
A: Yes. TH25 is engineered for industrial DPM scanning, including etched, engraved, or printed codes on metal, plastic, and glass.
Q2: Is this scanner suitable for harsh environments?
A: Absolutely. It has IP65-rated sealing and is drop-tested up to 1.8 meters, making it ideal for rugged use.
Q3: What is multi-light source scanning?
A: It’s a scanning method that uses adaptive lighting to enhance code readability across varying surfaces and lighting conditions.
Q4: Does it support fast production line use?
A: Yes, the high-speed decoding engine allows real-time scanning with low latency—perfect for conveyor belts or fast workflows.
📞 Need a Quote or OEM Support?
Looking for a reliable industrial scanner for DPM codes and harsh environments?
👉 Contact us at Info@effon.com for pricing, integration support, or to request a product demo.
EFFON – Industrial Barcode Scanning Solutions Built for Precision and Performance
