Multiple Scan Engines | 1D & 2D Barcode Scanning | Replaceable Battery | IP65 | Bluetooth HID / SPP / BLE

Product Overview

The EF02 Bluetooth ring barcode scanner is a lightweight wearable scanning solution designed for warehouse picking, inventory management, logistics, manufacturing, retail, and order fulfillment.

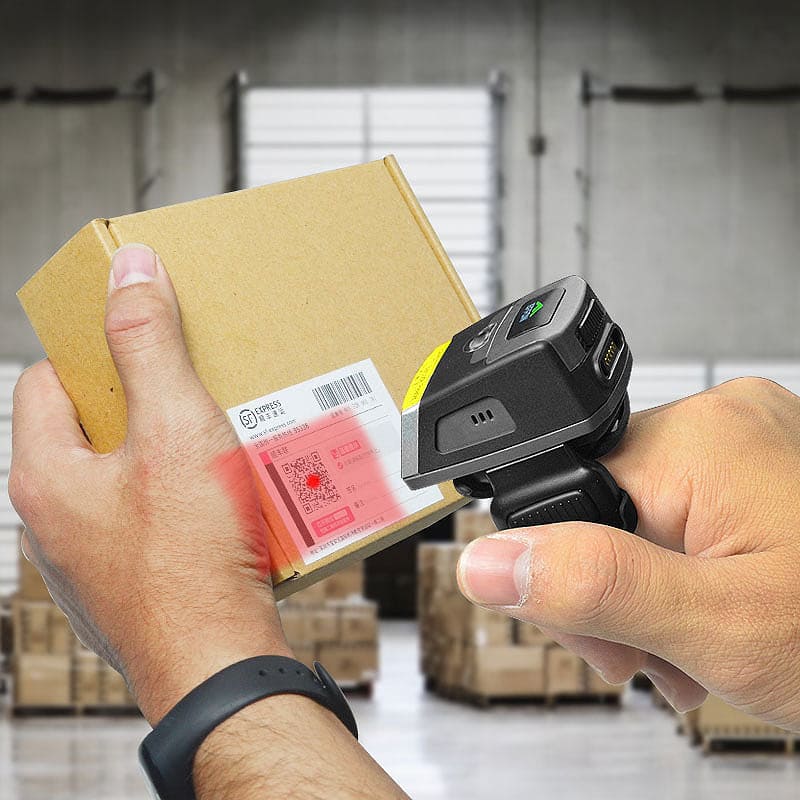

Worn directly on the finger, EF02 allows workers to keep both hands available for handling cartons, products, packages, and materials while scanning barcodes during daily operations.

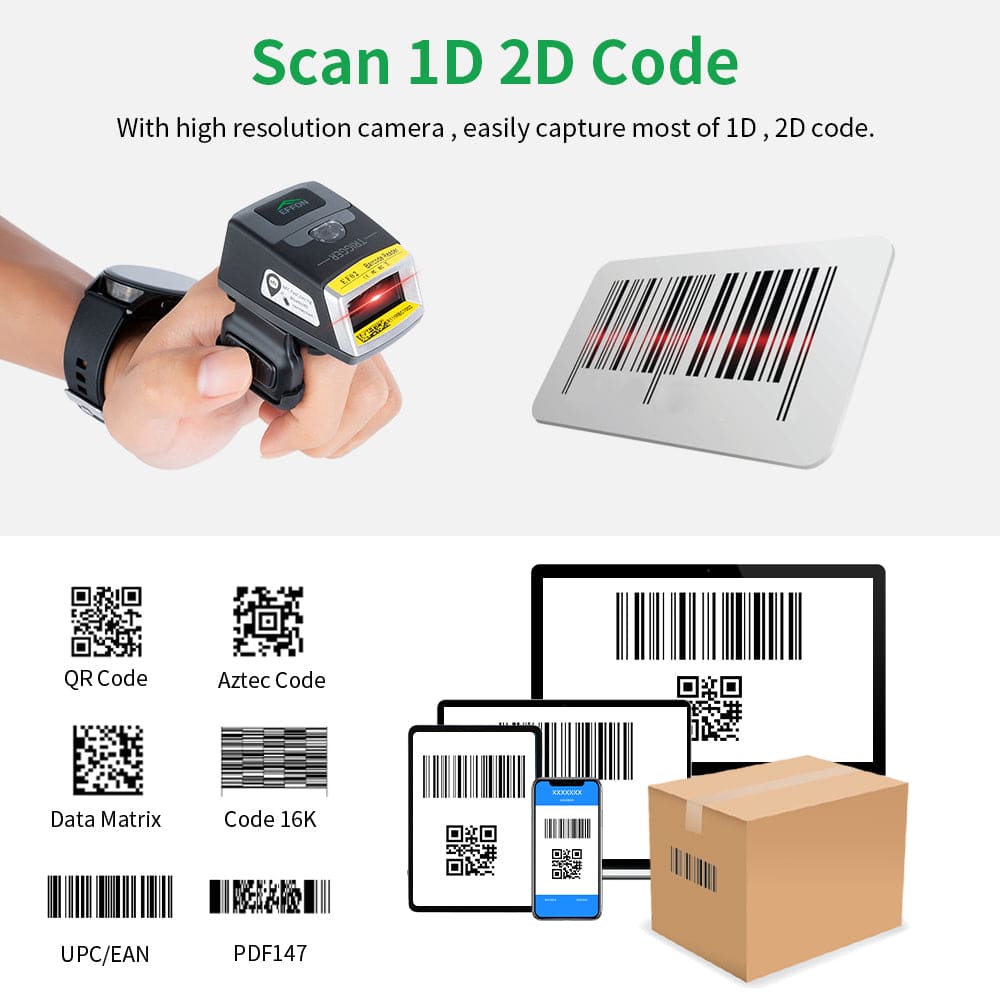

EF02 supports multiple scan engine options, ranging from standard 1D laser scanning to 2D standard-range, mid-range, and long-range barcode scanning.

Customers can select the most suitable scan engine according to barcode type, scanning distance, working environment, performance requirements, and budget.

Available Scan Engines

• Zebra SE965 — 1D
• E3P — 2D
• Zebra SE4107 — 2D
• Zebra SE4750MR — 2D Mid-Range
• Zebra SE55 / SE5500 — 2D Long-Range

⭐ Key Features

Multiple Scan Engine Options

EF02 can be configured with different scan engines for various barcode scanning applications.

Choose from economical 2D scanning, Zebra standard 2D scanning, mid-range scanning, or long-range scanning depending on your project requirements.

Hands-Free Wearable Design

The compact ring design allows operators to scan barcodes while keeping both hands free for picking, packing, sorting, loading, and material handling.

Lightweight and Comfortable

• Size: 55.0 × 39.2 × 51.2 mm
• Weight: approximately 65g

The compact wearable design is suitable for extended daily operation.

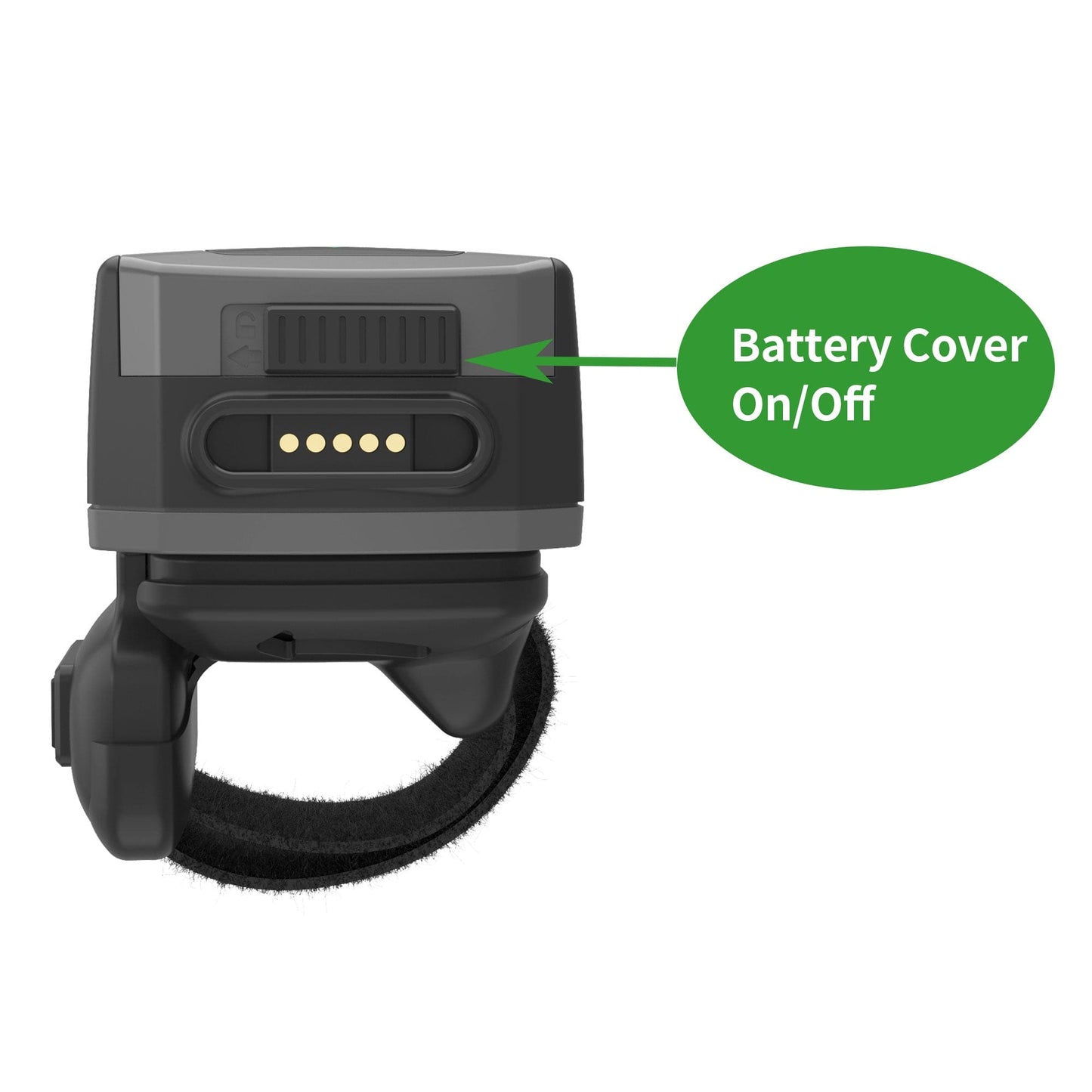

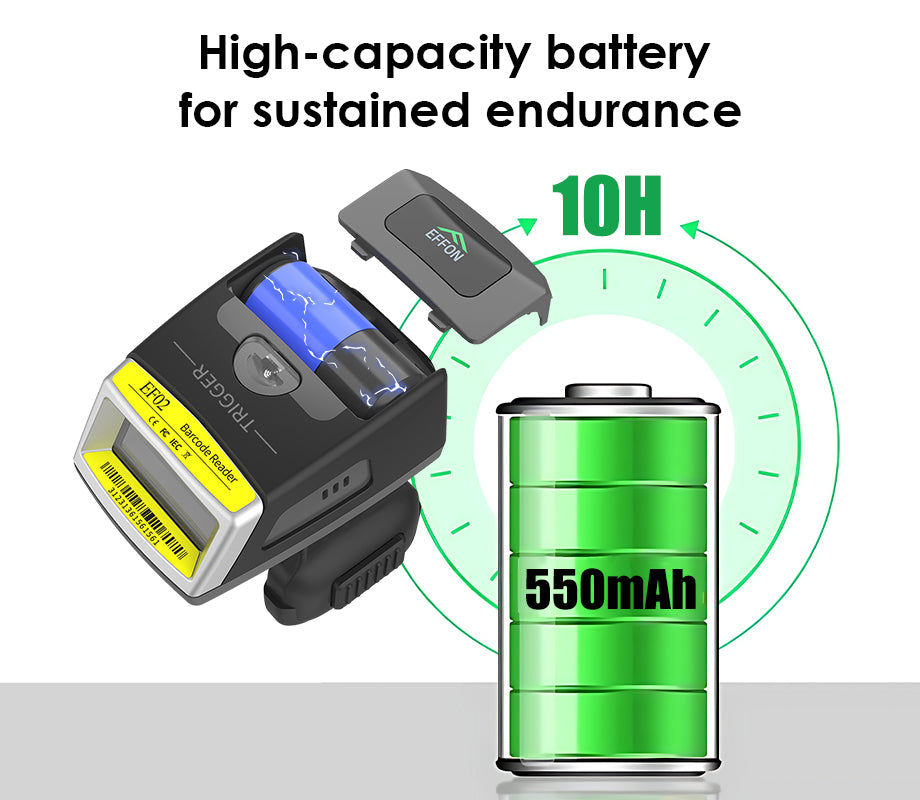

Replaceable 550mAh Battery

EF02 uses a 550mAh removable rechargeable battery.

The replaceable battery design allows operators to quickly replace a battery during longer shifts instead of waiting for the scanner itself to recharge.

Bluetooth Connectivity

Supports:

• Bluetooth HID
• Bluetooth SPP
• Bluetooth Low Energy / BLE

EF02 can connect with compatible Windows, Android, and iOS devices.

IP65 Protection

The EF02 housing provides IP65 protection, making it suitable for warehouse, logistics, manufacturing, and other demanding commercial environments.

Fast NFC Pairing

For compatible Android devices with NFC, EF02 supports quick pairing by tapping the scanner and mobile device together, helping operators reduce Bluetooth setup time.

Choose the Right EF02 Scan Engine

Different warehouse and logistics applications require different barcode types and scanning distances.

Use the guide below to choose the most suitable EF02 configuration.

Scan Engine	Barcode Type	Scanning Position	Recommended For
Zebra SE965	1D	Standard / Mid-range 1D	Traditional 1D warehouse and retail barcodes
E3P	1D & 2D	Cost-effective Mid-range	Logistics labels and general warehouse scanning
Zebra SE4107	1D & 2D	Standard Range	General warehouse, retail and inventory applications
Zebra SE4750MR	1D & 2D	Mid-Range	Warehouse shelves and longer-distance barcode scanning
Zebra SE55 / SE5500	1D & 2D	Long-Range	High racks and extended-range warehouse scanning

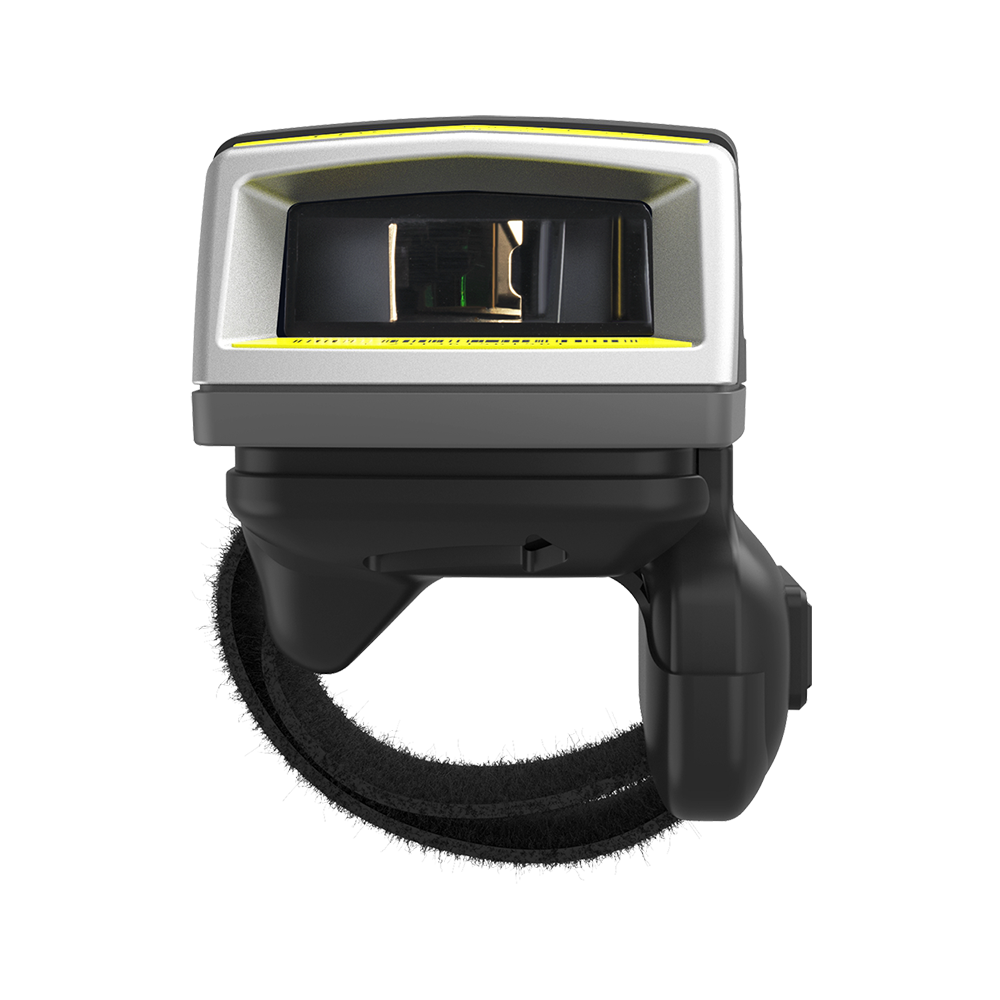

Zebra SE965 – 1D Laser Scan Engine

The Zebra SE965 is designed for customers who mainly scan traditional 1D barcodes.

It provides fast and reliable 1D barcode reading for warehouse picking, inventory counting, retail, logistics, and manufacturing applications.

Key Advantages

• Reads most common 1D barcodes
• Zebra laser scanning technology
• Wide 1D working range
• Suitable for traditional warehouse labels
• Cost-effective option when 2D scanning is not required

Recommended for: Customers who mainly use Code 128, Code 39, EAN, UPC, and other common 1D barcodes.

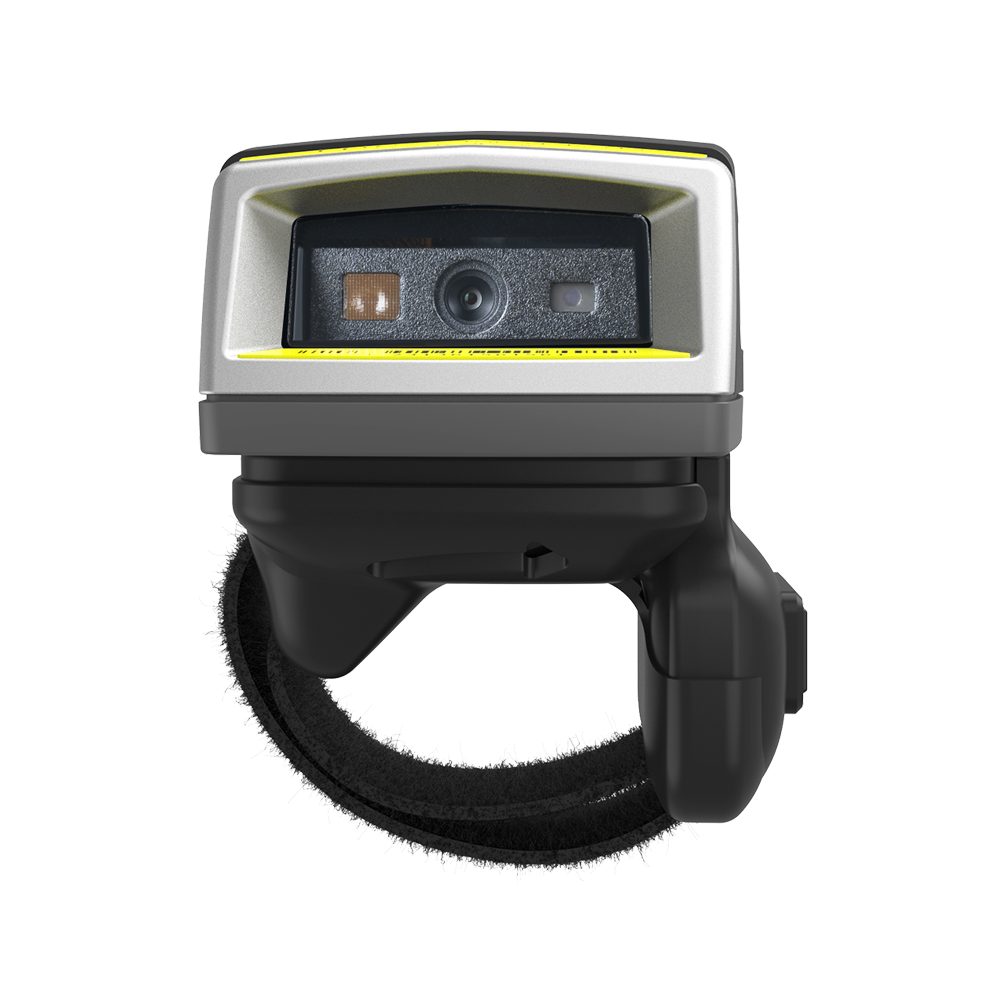

E3P – Cost-Effective 2D Scan Engine

The E3P 2D scan engine is designed primarily for logistics and warehouse barcode applications.

It supports common 1D and 2D barcodes and provides a longer working range for suitable logistics labels.

Key Advantages

• Supports common 1D and 2D barcodes
• Cost-effective 2D option
• Suitable for Code 128, Code 39 and logistics labels
• Longer scanning distance than typical standard-range imagers
• Ideal for price-sensitive warehouse projects

Recommended for: Warehouse, logistics, sorting, inventory, and general 2D barcode applications.

Note: E3P is not recommended when very small high-density barcodes such as 3 mil or 5 mil codes are a key requirement.

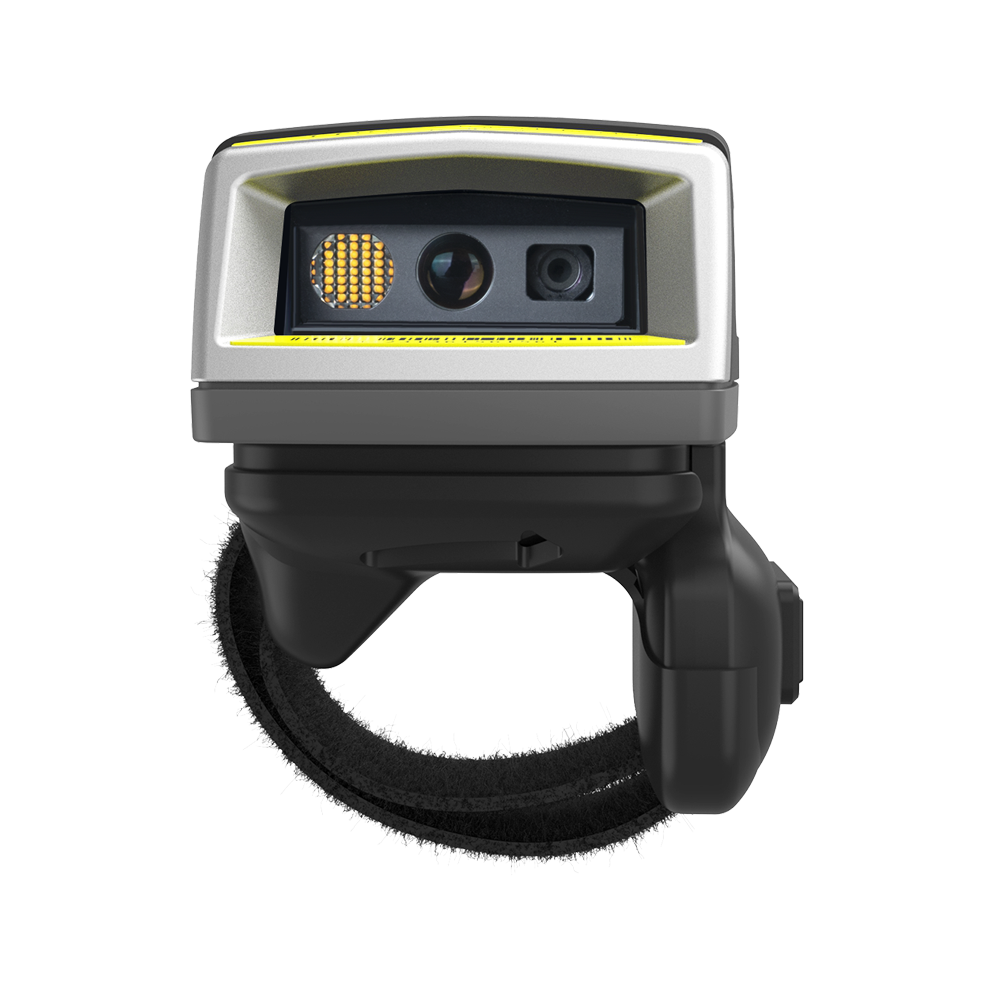

Zebra SE4107 – Standard 2D Scan Engine

The Zebra SE4107 is a compact standard-range 2D scan engine designed for everyday barcode scanning applications.

It can read most common 1D and 2D barcodes from both printed labels and compatible digital screens.

Key Advantages

• Reads common 1D and 2D barcodes
• QR Code
• Data Matrix
• PDF417
• Shipping and logistics labels
• Barcode scanning from paper and screens
• Zebra scanning performance

Recommended for: General warehouse picking, inventory management, retail, logistics, and standard-distance barcode scanning.

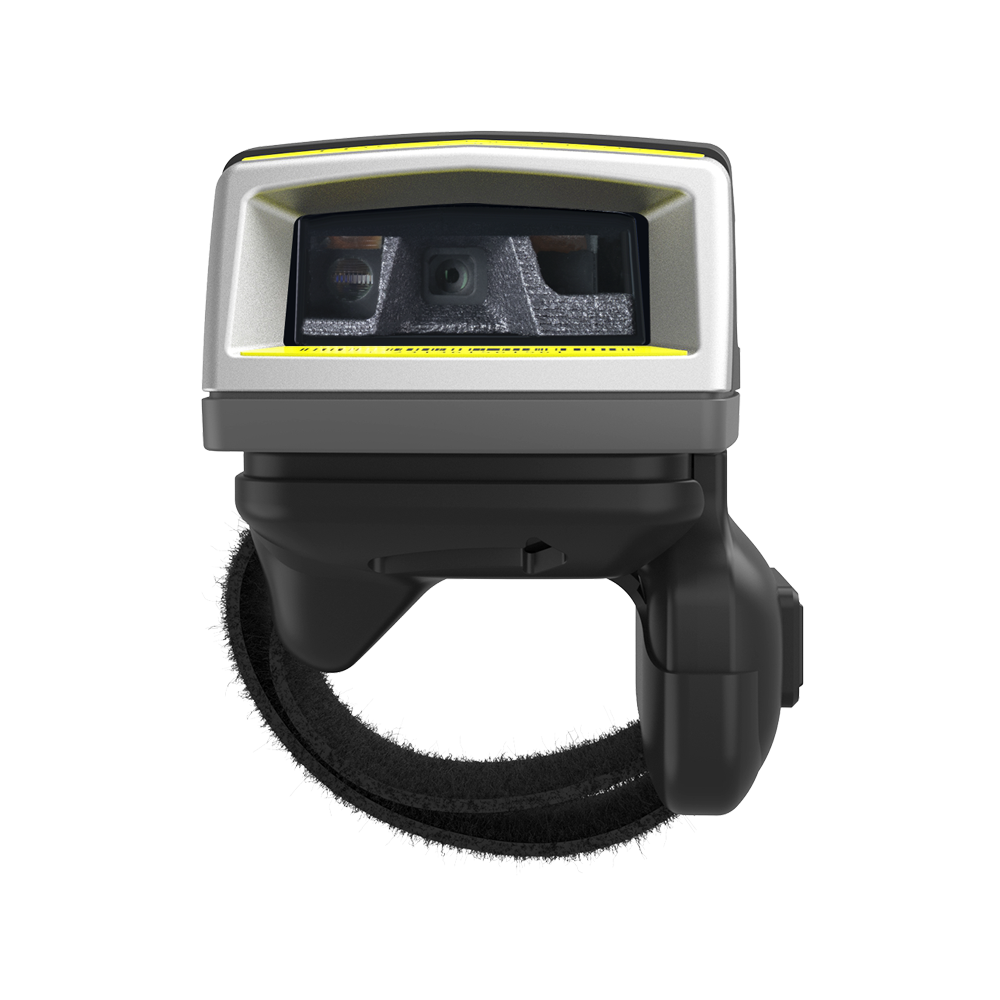

Zebra SE4750MR – Mid-Range 2D Scan Engine

The Zebra SE4750MR is designed for applications where operators need a greater scanning distance than a standard 2D scan engine.

It provides additional flexibility when scanning cartons, warehouse shelving, pallets, and barcodes that are not always positioned directly in front of the operator.

Key Advantages

• Supports common 1D and 2D barcodes
• Mid-range barcode scanning
• Suitable for warehouse shelves
• Greater flexibility in scanning distance
• Zebra decoding performance

Recommended for: Warehouses, logistics centers, distribution centers, inventory management, and applications requiring medium-distance barcode scanning.

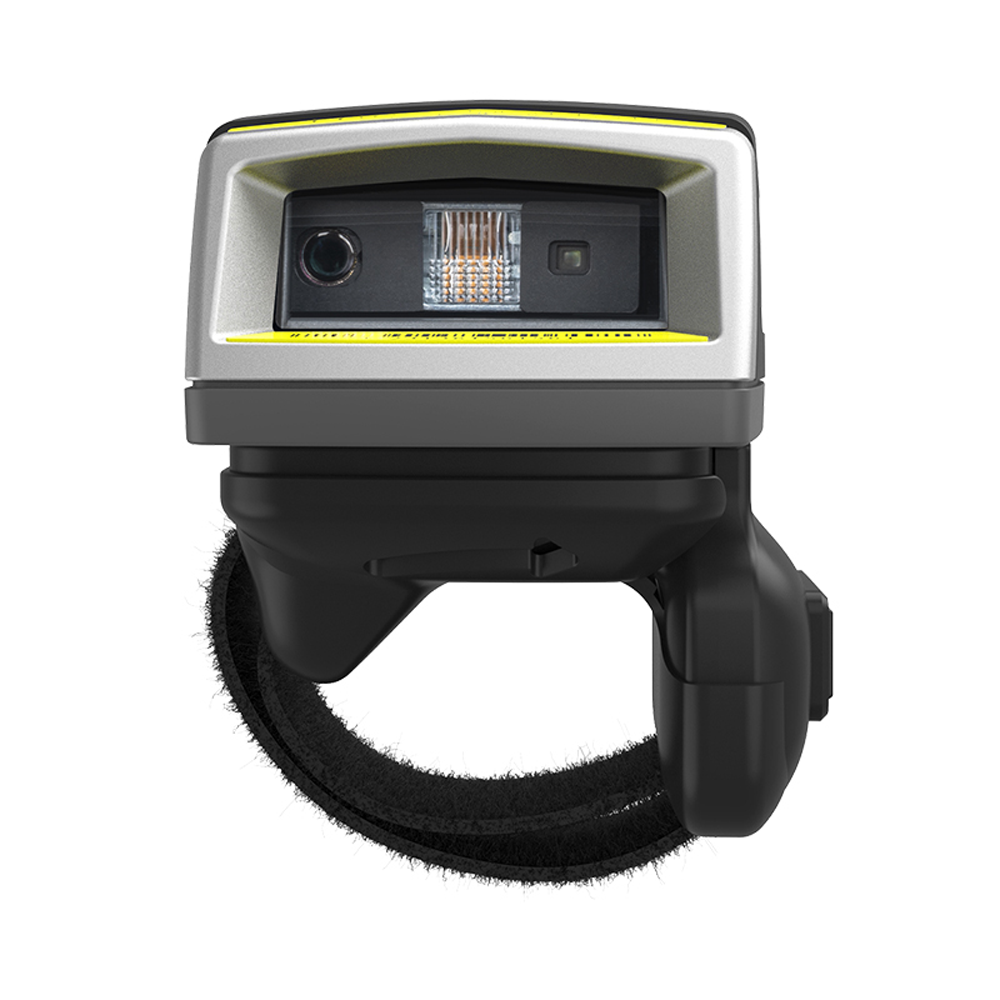

Zebra SE55 / SE5500 – Long-Range 2D Scan Engine

The Zebra SE55 / SE5500 long-range scan engine is designed for demanding warehouse applications where operators need to capture barcodes from significantly greater distances.

Its advanced long-range scanning capability makes it suitable for scanning labels on warehouse racks, pallets, storage locations, and products positioned beyond normal handheld scanning distance.

Key Advantages

• Supports common 1D and 2D barcodes
• Long-range barcode scanning
• Suitable for high warehouse racks
• Helps reduce unnecessary walking and reaching
• Designed for professional warehouse applications

Recommended for:

• High-rack picking
• Pallet scanning
• Forklift operations
• Large warehouse / distribution center

Which Scan Engine Should I Choose?

I only scan 1D barcodes.

Choose Zebra SE965.

I need an economical 2D version.

Choose E3P.

I need a standard Zebra 2D scanner for normal warehouse use.

Choose Zebra SE4107.

I need to scan barcodes from a greater distance.

Choose Zebra SE4750MR.

I need long-range scanning for high warehouse racks.

Choose Zebra SE55 / SE5500.

Technical Specification

Dimension	55.0×39.2×51.2 mm (L×W×H)
Weight(g)	65 g
Scan Engines(Optional)	Zebra SE965/Zebra SE4107/Zebra SE4750/Zebra SE55/Newland E3P
Resolution	1280x960 pixel
Battery Capacity	550mAh removable
Battery Capacity	550mAh Replaceable
Charging Time	2 hours full charge
Bluetooth Transmission	50 Meter(Open Area)
Connectivity	Bluetooth 5.0
Compatibility	Android, iOS, Windows
Communication	Bluetooth HID, SPP, BLE with 30M distance, Support NFC pairing, RS232 cable(optional)
IP Rating	IP65
Tumble Spec	2,000 3.28 ft./1m tumbles
Operating Temperature	-10°C to 60°C
Storage	-20°C to 60°C



Frequently Asked Questions

What is the difference between the EF02 scan engine options?

The main differences are barcode type, scanning distance, scanning performance, and price.

SE965 is designed for 1D barcode scanning.

E3P and SE4107 support common 1D and 2D barcode applications.

SE4750MR is designed for mid-range scanning.

SE55 / SE5500 is designed for long-range warehouse scanning.

Which EF02 version is recommended for general warehouse use?

For standard warehouse barcode scanning, E3P or Zebra SE4107 are suitable choices.

E3P provides a more economical 2D option, while SE4107 is a standard Zebra 2D configuration.

Which version should I choose for long-range barcode scanning?

For medium-distance scanning, choose Zebra SE4750MR.

For high racks and significantly longer scanning distances, choose Zebra SE55 / SE5500.

Can EF02 scan QR codes?

Yes, when configured with a 2D scan engine such as E3P, SE4107, SE4750MR, or SE55 / SE5500.

SE965 is a 1D-only scan engine.

Does EF02 work with Android?

Yes. EF02 supports Bluetooth connection with compatible Android devices and supports HID, SPP, and BLE communication modes.

Does EF02 work with Windows?

Yes. EF02 can connect with compatible Windows computers via Bluetooth.

Charging and Bluetooth adapter accessories are also available for workstation applications.

Is the battery replaceable?

Yes. EF02 uses a removable 550mAh battery, and spare batteries can be prepared for longer working shifts.

Can I order a sample before purchasing in bulk?

Yes. Sample units are available for evaluation before bulk orders.

Can you help us select the correct scan engine?

Yes. You can send us:

• Barcode type
• Barcode size
• Required scanning distance
• Application
• Working environment
• Sample barcode or photos

and we can recommend the most suitable EF02 configuration.

Sample Testing & Bulk Orders

Not sure which EF02 scan engine is suitable for your application?

Send us your barcode samples, scanning distance, working environment, and project requirements.

We can help recommend the appropriate configuration before you place a bulk order.

EFFON supports:

• Sample evaluation
• Bulk order pricing
• Multiple scan engine options
• OEM branding

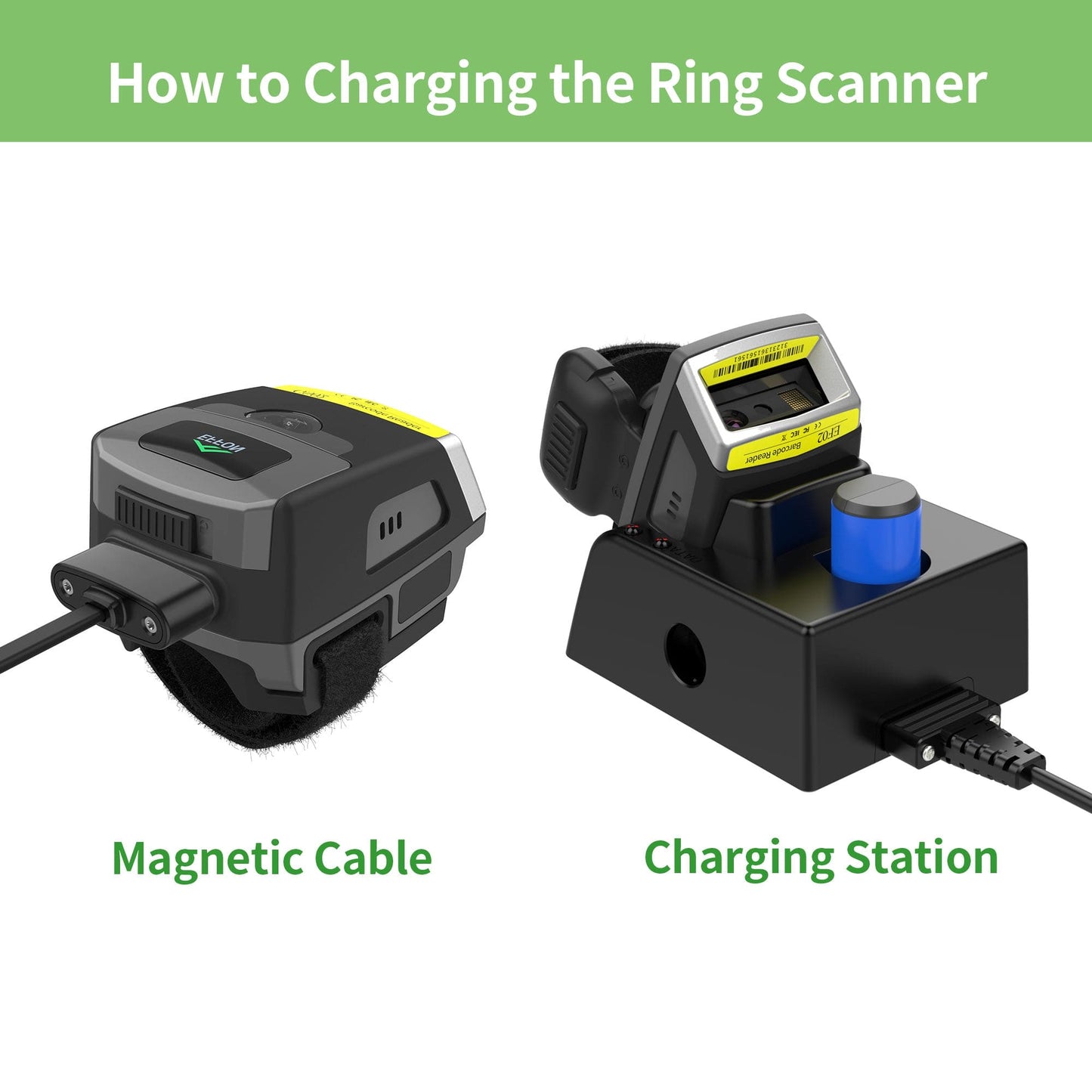

• Charging solutions
• Spare batteries
• Technical support
• Warehouse and project deployment

Email: info@effon.com
