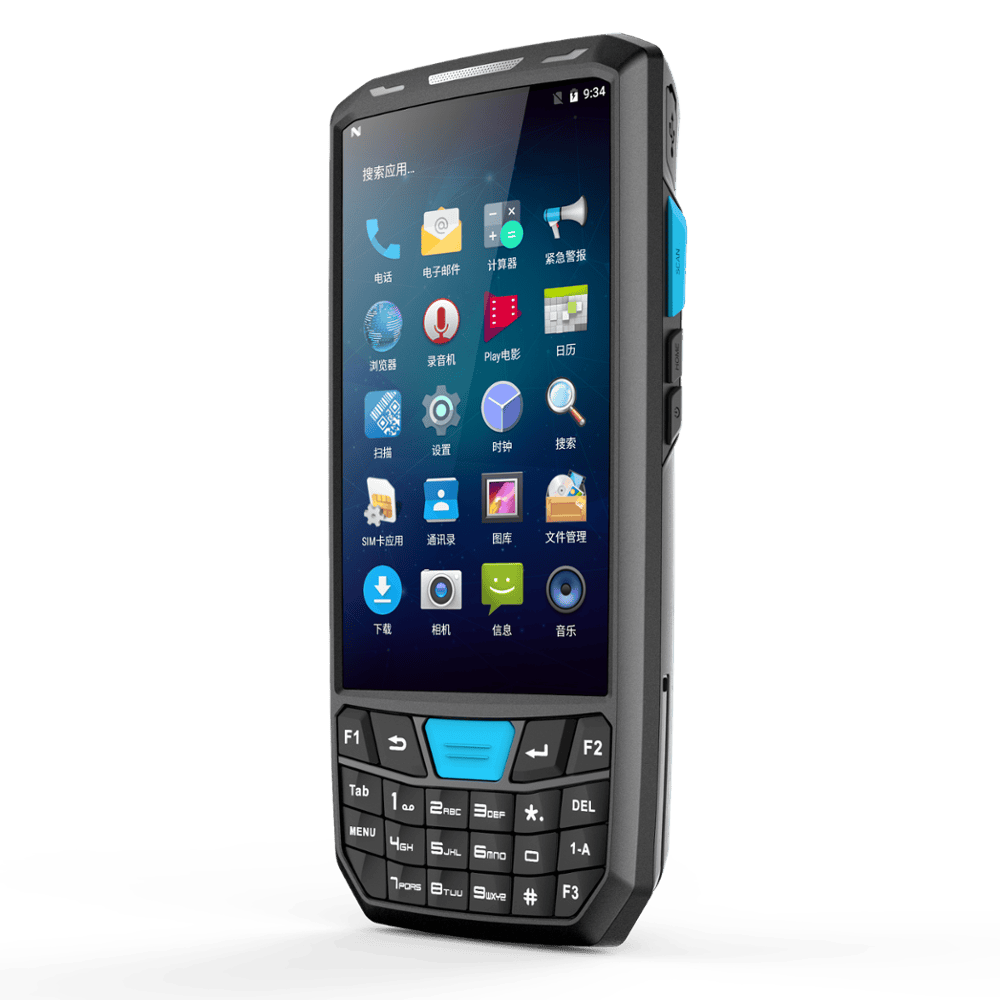

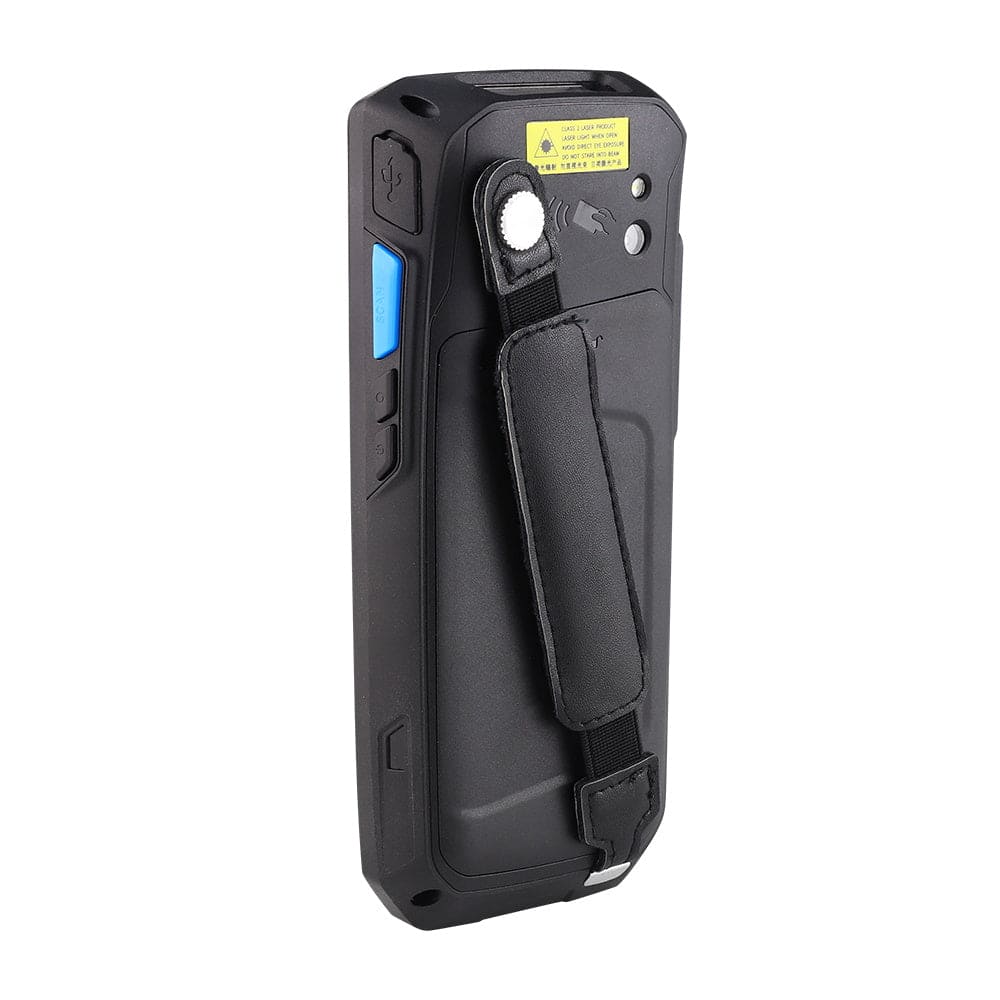

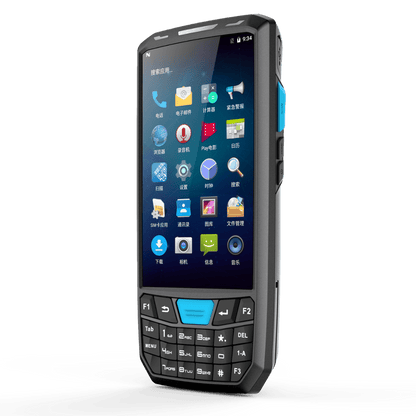

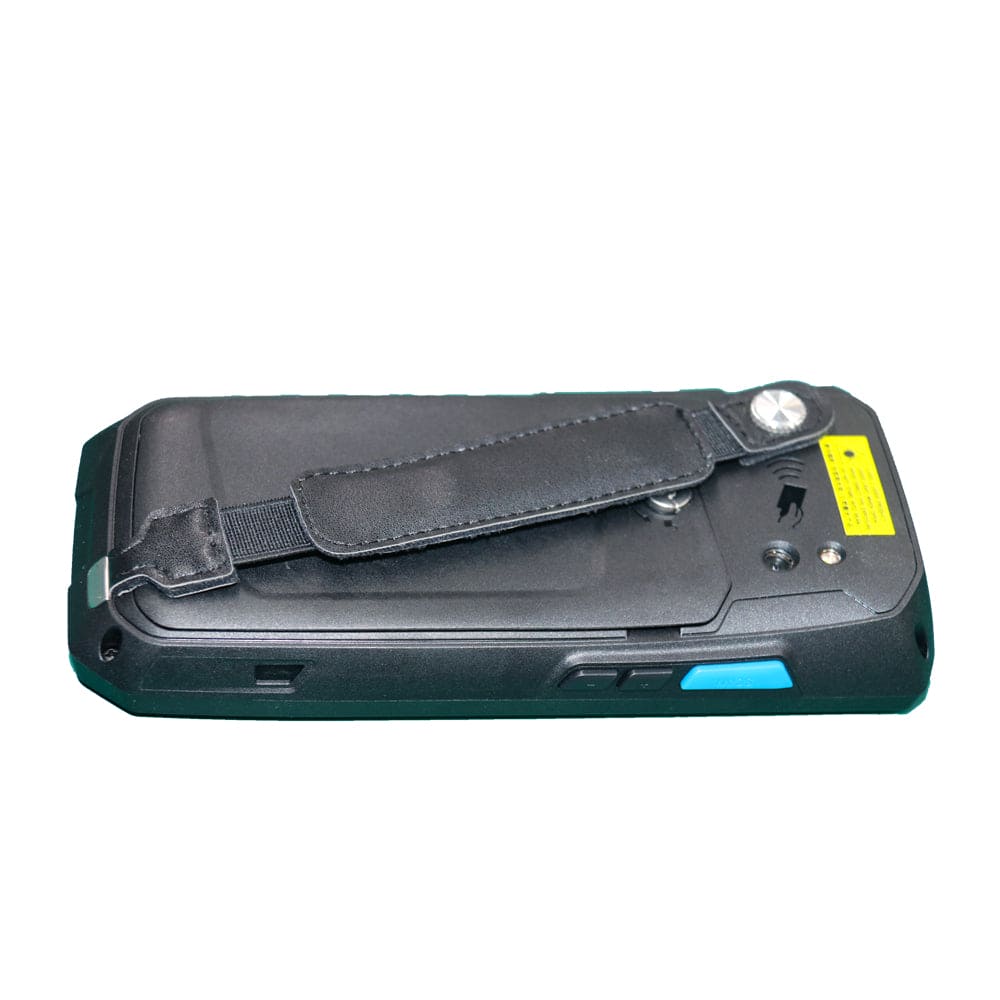

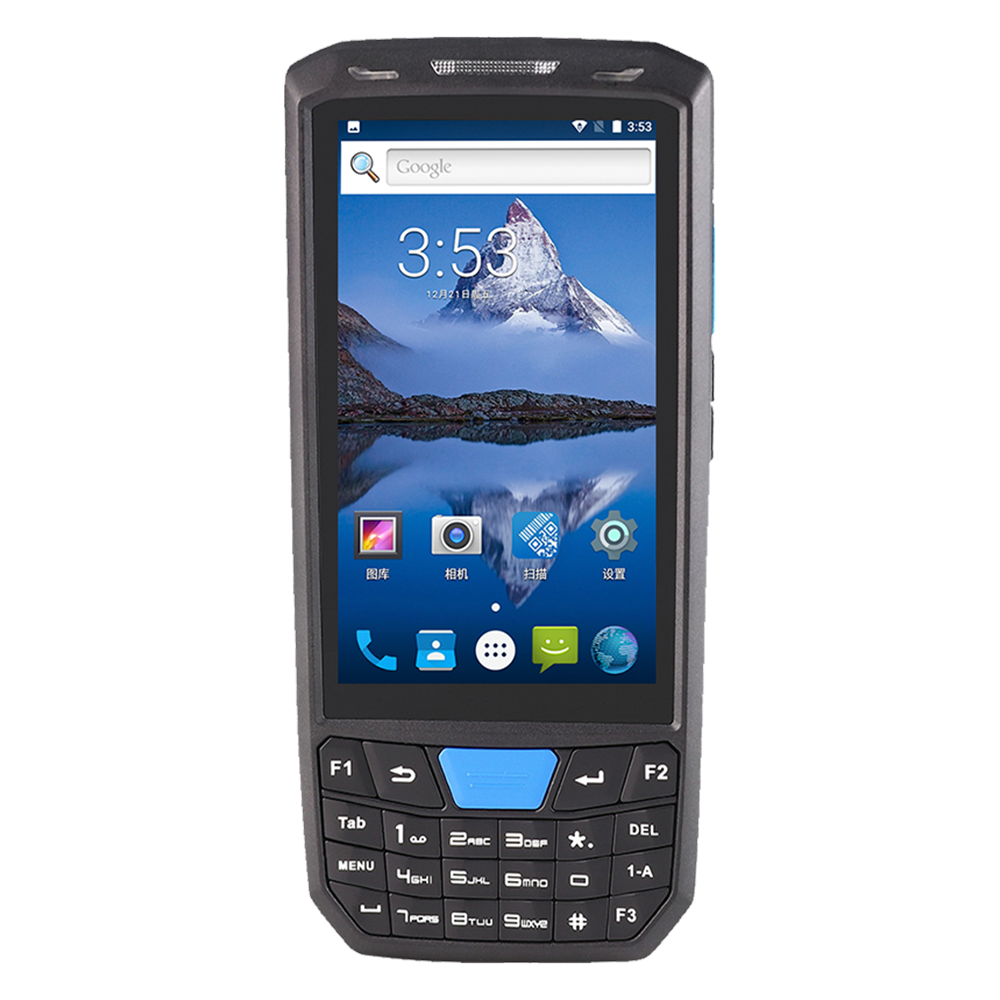

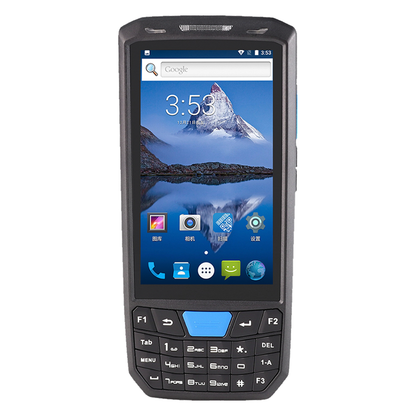

Rugged PDAs Android Handheld Computer with Honeywell 2D Barcode Scanner HS04
Rugged PDAs Android Handheld Computer with Honeywell 2D Barcode Scanner HS04
Couldn't load pickup availability
Rugged PDA – Android Handheld Computer with Honeywell 2D Barcode Scanner | HS04
Android 13.0 | Honeywell 2D Scan Engine | Built for Enterprise Mobility
Product Overview
The HS04 Rugged Android Handheld PDA is a compact yet powerful Android handheld computer designed to meet the demands of field service, logistics, retail, and manufacturing environments.
Equipped with the latest Android 13.0 OS, a Honeywell 2D barcode scanner, and dual-band 802.11ac WiFi, this rugged PDA handheld device combines high-speed data capture with reliable performance in challenging environments.
Its 4.5-inch IPS touchscreen, removable 4200mAh rechargeable polymer battery, and support for modern wireless protocols make the HS04 an ideal mobile terminal for on-the-go professionals.
⭐ Key Features
📱 Android 13.0 – Modern, Secure, Efficient
- Run the latest applications with full support for Android Enterprise
- Enhanced privacy, security, and app performance with Android 13.0 OS
🔍 Honeywell 2D Barcode Scanner – Fast & Accurate
- Integrated Honeywell engine delivers precise scanning of 1D/2D barcodes
- Easily scans damaged, scratched, and poorly printed labels
🧠 Powerful Memory Configuration
- RAM: 4GB / ROM: 64GB for smooth multitasking and app storage
- (Also available in 2GB RAM version for cost-sensitive deployments)
🌐 Enterprise-Grade Wireless Communication
- Dual-band WiFi (2.4GHz & 5GHz) supporting IEEE 802.11 a/b/g/n/ac/d/e/h/i/j/k/r protocols
- Bluetooth 5.0, 5–10 meter range for reliable peripheral pairing

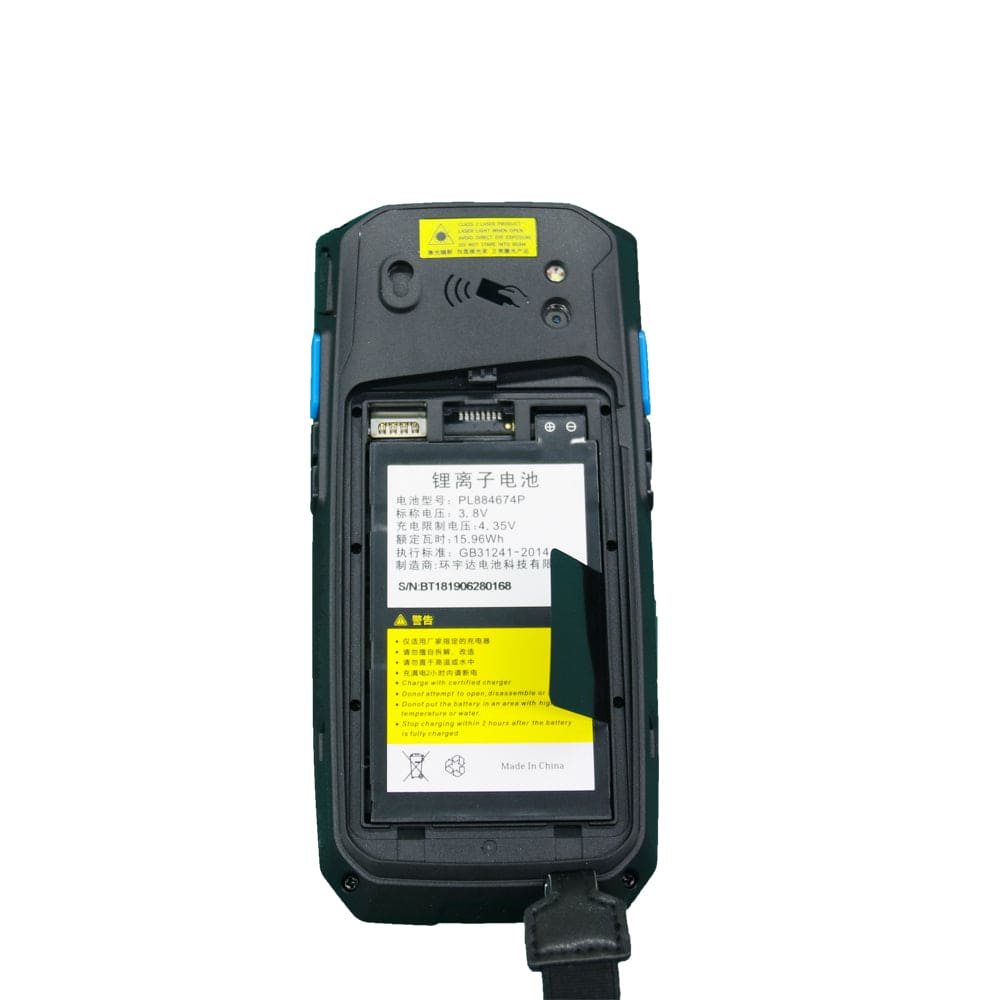

🔋 Removable Rechargeable Polymer Battery
- 3.8V 4200mAh removable battery for extended field operations
- Easy to swap for continuous use across long shifts
🖥️ Vivid 4.5-inch IPS Touchscreen
- Bright, color-rich display offers excellent visibility indoors and outdoors
- Ideal size for single-handed use and durable enough for rough handling
💪 Rugged Yet Lightweight Design
- Engineered for harsh environments with drop and dust resistance
- Compact body for field use, warehouse mobility, or in-vehicle mounting
Technical Specifications
Model Name | HS03 Android Handheld PDA |
Scan Engines | 2D Honeywell 6703 |
Weight(g) | <500g |
Dimension |
166mm×77.5mm×22mm
|
Display
|
4.5 inch IPS color display with resolution 480*854
|
Battery capacity
|
Rechargeable polymer battery (3.8V 4200mAh) removable
|
Working Time | >12 hours |
Charging Time | 2-3 hours |
Scanning Type | 1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,
Chinese 2 of 5, Codabar, MSI, RSS,etc.
|
Scanning Type | 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR
code, Aztec, MaxiCode, HanXi,etc
|
Camera
|
Rear camera: 8MP (13MP Optional) Support auto focus, Flash, etc.
|
Expansion Card slot
|
Micro SIM x1, TF x1, (PSAM x2 Optional)
|
Communication interface
|
Type-C USB x1, Support OTG function
|
Keypad
|
13 soft silicone buttons
|
Operating Temperature
|
-20°C to 55°C
|
Storage
|
-40°C to 70°C
|
Drop specification
|
6 sides Supports 1.5 meters drops on the marble within the operating temperature
|
Rolling test
|
0.5m rolling for 6 sides, can still work steadily
|
IP Rating
|
IP66
|


📦 Package Contents
- 1 × HS04 Rugged PDAs Handheld Computer
- 1 × USB Charging Cable
- 1 × EU/US Charging Adaptor
- 1 × User Manual
❓ Frequently Asked Questions
Q1: Can I run my enterprise apps on HS04?
A: Absolutely. With Android 13.0, you can run modern enterprise apps and deploy using Android Enterprise tools.
Q2: Is the battery user-replaceable?
A: Yes, the 4200mAh rechargeable polymer battery is removable, making it easy to hot-swap during long shifts.
Q3: Can it scan QR codes from screens?
A: Yes, the Honeywell 2D scanner reads both printed and screen-based codes reliably.
Q4: Does it support high-speed WiFi?
A: Yes, it supports dual-band 802.11ac WiFi, ensuring stable, fast wireless connections.
📞 Get a Quote or Schedule a Demo
Looking for a rugged, high-performance Android handheld computer with Honeywell scanning?
👉 Contact us at Info@effon.com to request pricing, samples, or customization options.
EFFON – Rugged PDA Solutions Trusted Worldwide
