TG03 Android Wearable Wrist Computer with Integrated 2D Barcode Scanner
TG03 Android Wearable Wrist Computer with Integrated 2D Barcode Scanner
Couldn't load pickup availability
Hands-Free Android Wearable Computer for Warehouse, Logistics and Industrial Operations
The EFFON TG03 is an enterprise-grade Android wearable computer with an integrated 1D and 2D barcode scanner, designed for hands-free warehouse, logistics, retail and manufacturing operations.
Similar to the product concept of the Zebra WS50 wearable computer, the TG03 combines an Android mobile computer, touchscreen and professional barcode scanner in one compact wrist-mounted device. Workers can view task information, scan barcodes and process data without repeatedly holding a traditional handheld PDA.
Weighing only 99g without the glove, the TG03 provides a lightweight and comfortable wearable solution for order picking, inventory counting, receiving, dispatching, sorting and production-line management.
Key Features:
• Android 14 operating system
• Integrated 1D and 2D barcode scanner
• 4GB RAM and 64GB ROM
• Octa-core 2.2GHz processor
• Industrial OLED touchscreen
• 800-nit display for outdoor visibility
• Dual-band 2.4GHz and 5GHz Wi-Fi
• Wi-Fi fast roaming support
• Bluetooth 5.0 with BLE
• Replaceable 2300mAh battery
• Hot-swappable battery design
• IP68 industrial protection
• 1.2m six-sided drop resistance
• Scan distance from approximately 4cm to 70cm
• LED, audio and vibration scan feedback
• Integrated 8MP autofocus camera
• Loudspeaker output of over 90dB
The TG03 supports common 1D and 2D barcode symbologies, including Code 128, Code 39, EAN, UPC, PDF417, Data Matrix, QR Code, Micro QR and Aztec.
Product Specifications
| Dimension | Host size: 60*52*16 Unit: mm Base size: 78*68*24 Unit: mm |
| Weight(g) | 99g (Does not include gloves) |
| Scan Engines | 2D |
| Resolution | 1280x800 pixel |
| Battery Capacity | Removable 2300mAh |
| Working Horus | 9 hours |
| Charging Time | 1.5 hours full charge |
| Bluetooth Transmission | 50 Meter(Open Area) |
| Scanning Type | Support 1D and 2D code reading simultaneously.
Scanning distance: 4cm - 70cm (depending on different
barcode densities and symbologies). Decoding capabilities: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec, Postal Codes: US PostNet; US Planet; UK Postal; Japan Postal Dutch Postal (KIX), etc. |
| Connectivity | Bluetooth5.0 support BLE |
| Android Version | Android 14.0 |
|
Processor
|
ARM Cortex-A76 Eight-core 2.2GHz
|
|
Memory
|
64GB ROM + 4GB RAM
|
|
Wireless
Local Area Network
|
Wififi 802.11 a/b/g/n/r/ac 2.4G+5G，Support fast roaming
|
|
Camera
|
8 million pixels, autofocus
|
|
Touch panel
|
Corning Gorilla Glass, industrial OLED screen,
multi-point capacitive touch
|
|
Protection level
|
IP68
|
|
Operating Temperature
|
-10°C to 50°C
|
|
Storage
|
-20°C to 60°C
|

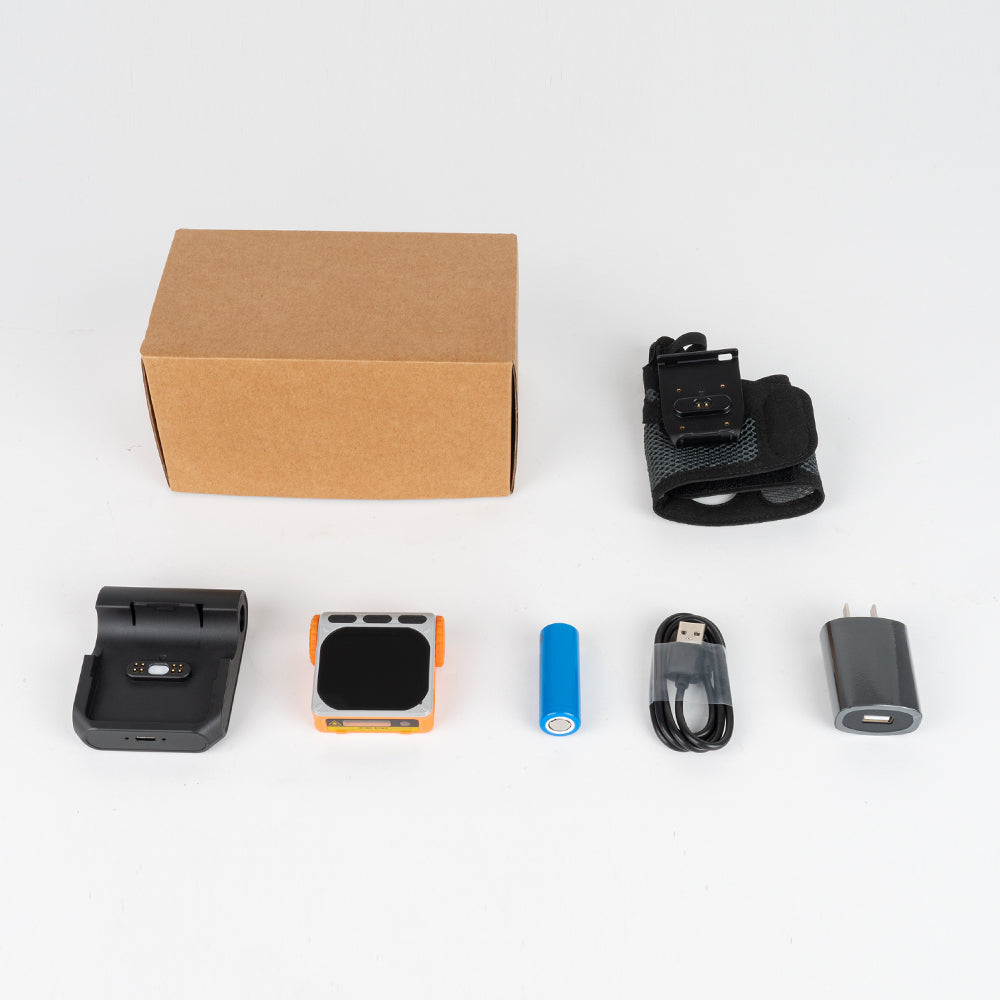

Standard Package
- TG03 Android wearable computer
- Wearable glove
- Charging base
- USB data cable
Frequently Asked Questions
Does the TG03 have a built-in barcode scanner?
Yes. The TG03 integrates a professional scan engine that supports both 1D and 2D barcodes.
Can I install my own Android application?
Yes. The TG03 runs Android 14 and supports customer Android application installation. Application compatibility should be tested before bulk ordering.

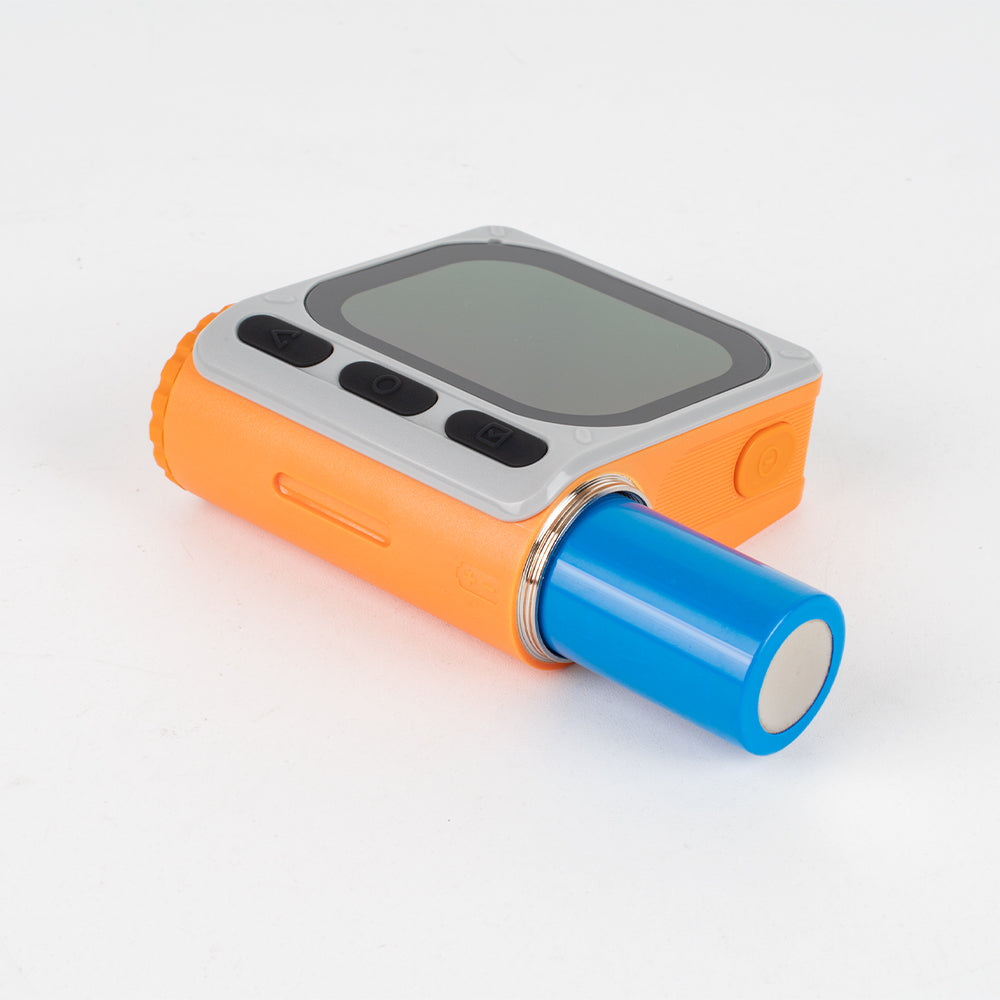

Is the battery replaceable?
Yes. The TG03 uses a removable 2300mAh battery and supports battery replacement for extended work shifts.
Does the TG03 support Wi-Fi roaming?
Yes. It supports dual-band Wi-Fi and fast roaming between compatible wireless access points.
Can it scan barcodes from a screen?
The TG03 can read many barcodes displayed on phones, tablets and computer screens. Actual performance depends on screen brightness, barcode size and display quality.
Is it suitable for warehouse picking?
Yes. The TG03 is designed for hands-free warehouse operations such as picking, receiving, dispatching, sorting and inventory counting.
Is it waterproof?
The TG03 has an IP68 protection rating. Actual protection may depend on correct use, accessory installation and operating conditions.
Can you customize the software?
Yes. Firmware, applications, barcode settings, data formats and other software functions can be evaluated according to project requirements.
Contact EFFON
Contact us for sample testing, software integration, OEM/ODM customization and project quotations.
