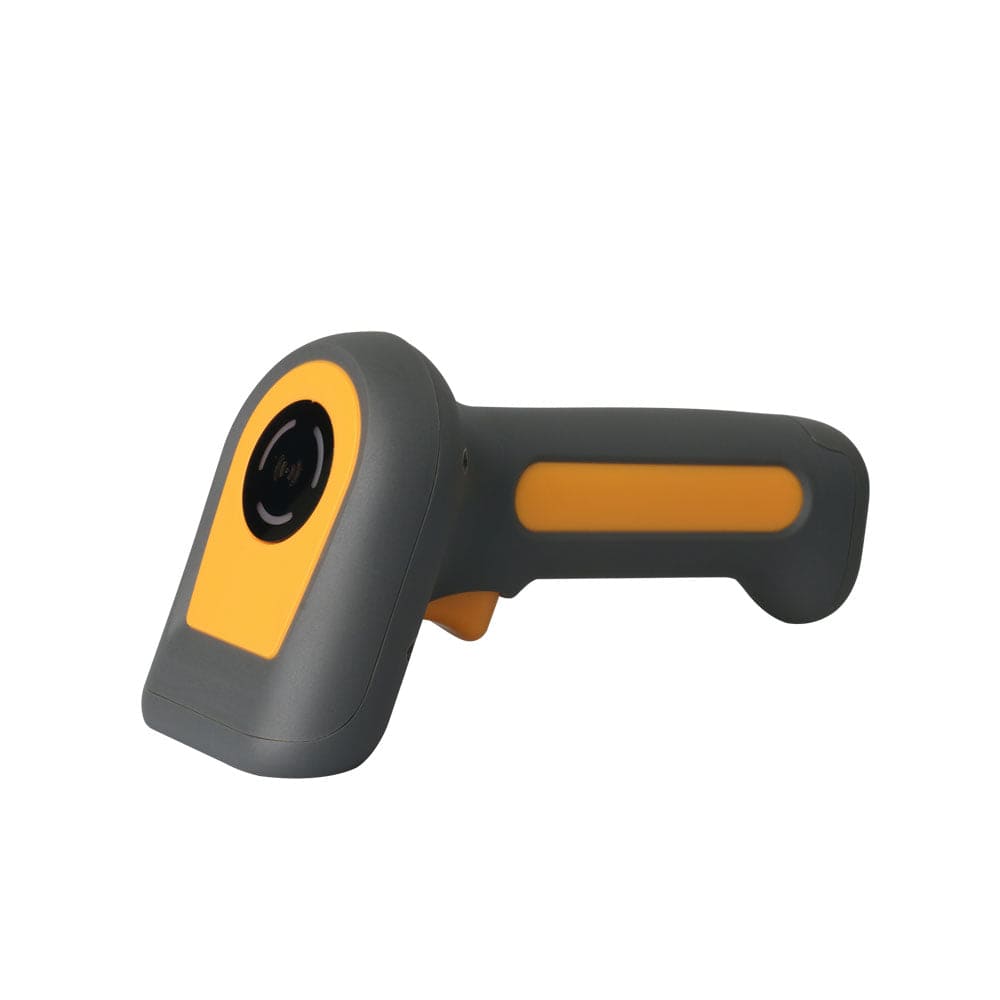

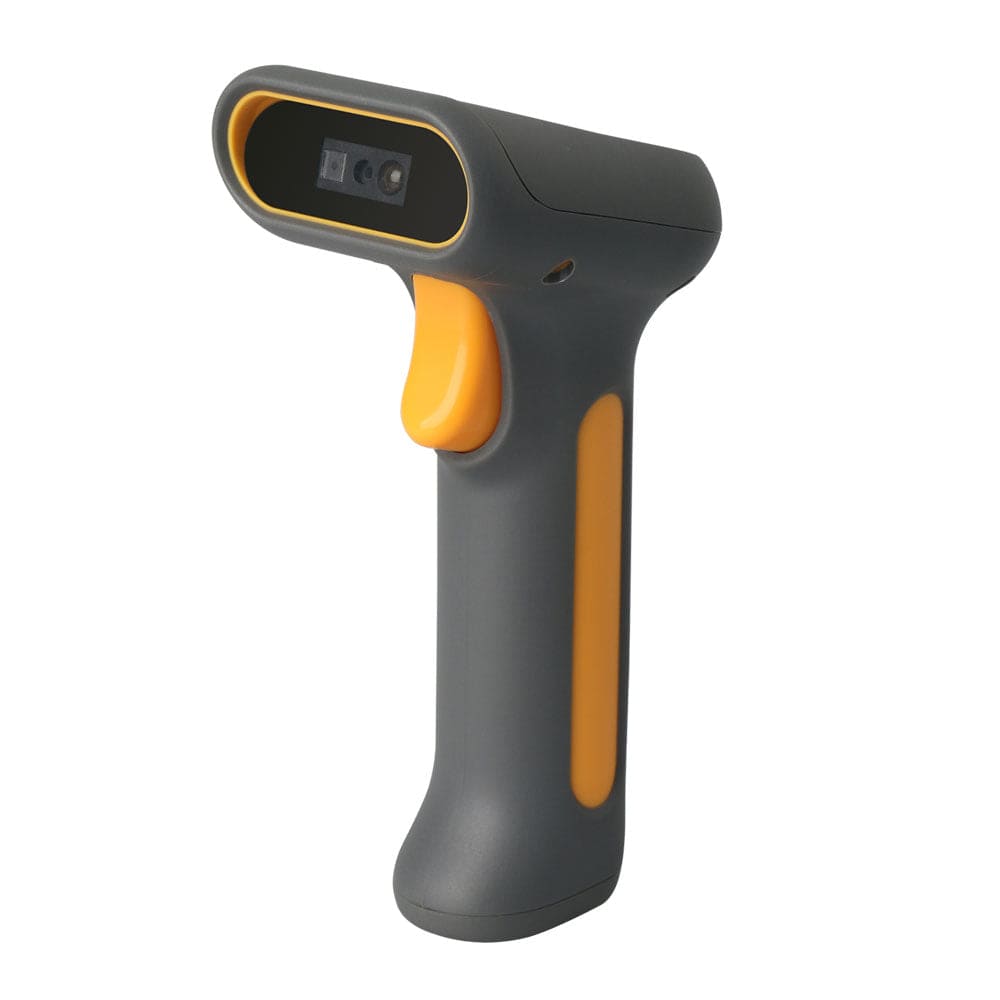

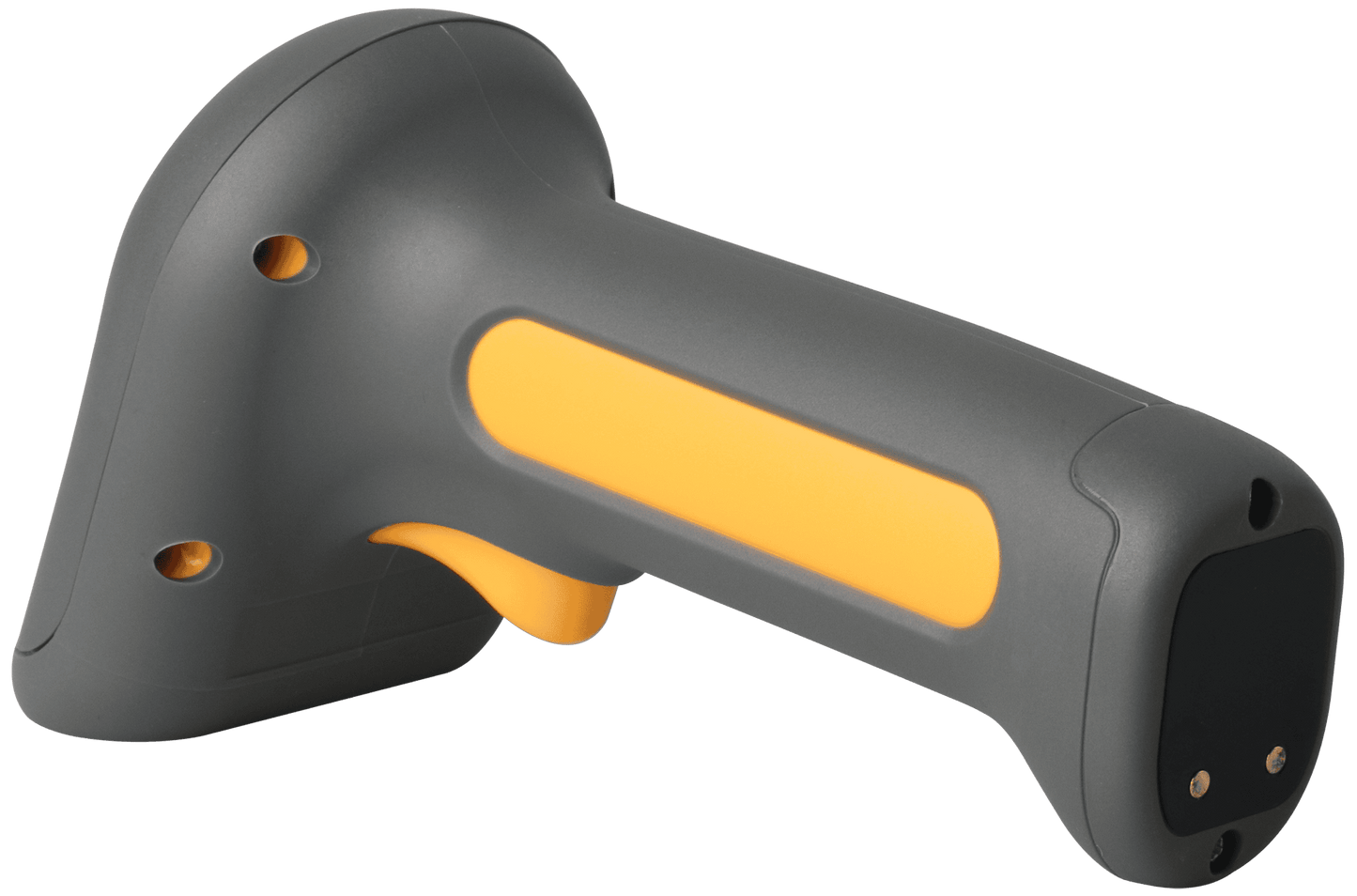

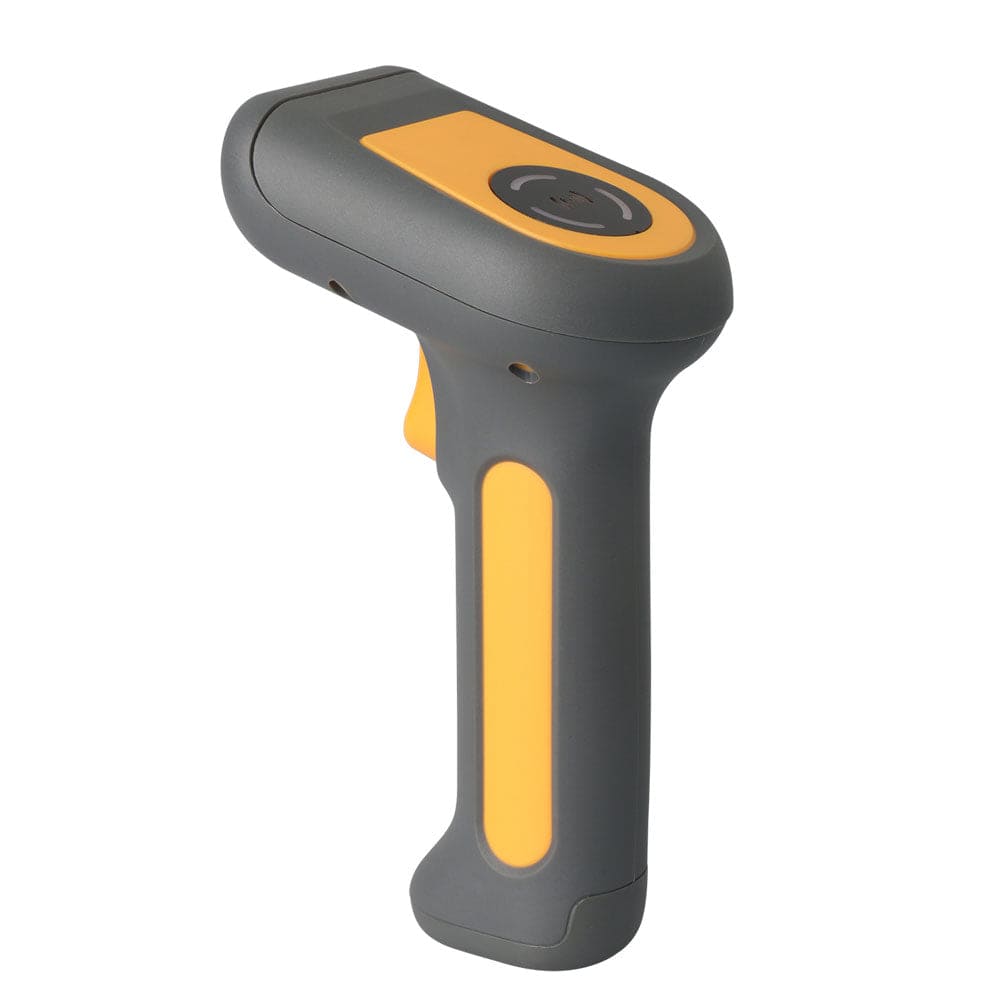

PTH5U Wired Industrial Barcode Scanner – 2D Handheld USB Barcode Reader
Rugged. Reliable. Ready for Demanding Scanning Environments.
Product Overview
The PTH5U Barcode Scanner is a high-performance wired industrial barcode scanner equipped with advanced 2D imaging technology, capable of accurately reading both 1D and 2D barcodes from paper, plastic, packaging, and digital screens.
Built with an anti-drop, anti-vibration structure and a high-performance decoding engine, the PTH5U is ideal for applications ranging from retail and logistics to warehousing, manufacturing, and asset management.
⭐ Key Features
💪 Industrial-Grade Durability
- Designed with a robust anti-shock housing to withstand vibration and accidental drops.
- Ideal for high-volume industrial or commercial environments.
📷 Advanced 2D Imaging Technology
- Effortlessly reads barcodes from paper, labels, plastic surfaces, and LCD/LED screens.
- Handles damaged, scratched, or low-contrast barcodes with ease.
🔍 Superior Scanning Performance
- Reads all mainstream 1D and 2D barcodes, including QR, PDF417, Data Matrix, EAN, Code 128, and more.
- Supports scanning barcodes as small as 3mil, ensuring precision in compact code environments.
🧠 Integrated High-Speed MCU
- Features a high-performance microprocessor decoding chip for faster recognition and reduced scan latency.
- Smooth performance even with dense or complex barcode layouts.
🔁 Multiple Working Modes
- Supports trigger mode, continuous mode, and auto-sensing mode.
- Easily adaptable to different operational scenarios.
Connectivity
The PTH5U operates in wired mode and must be connected to a host device via USB or RS232 interface:
- USB Interface: Standard USB (USB-A Female)
- RS232 Interface: DB9 Serial Port (Male)
- Compatible with PCs, POS systems, Android terminals, and most intelligent host platforms.
🏷️ Applications
- Mobile Payment & E-Ticket Scanning
- Chain Retail Stores & Supermarkets
- Express Logistics & Warehousing
- Food Safety & Product Traceability
- Asset Management & Inventory Tracking
- Manufacturing Line Barcode Validation
- Medical & Pharmaceutical Inventory
- Meter Reading & Utility Tracking
Technical Specifications
| Model Name | PTH5 Wired Handheld Barcode Scanner |
| Dimension |
153.2mmL*66mmW*110.5mmH
|
| Weight(g) | 155g |
| Interface | USB (USB-KBW，USB-COM)，RS232 |
| Resolution |
1.3 million
|
|
Reading depth of field
|
60mm~1000mm
|
| Scanning Type | 1D: UPC-A，UPC-E，EAN-8，EAN-13，Code 128，GS1-128，Code
39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of
5，Industrial 2 of 5(Straight 2 of 5)，Codabar（NW-7），MSI，
GS1 Databar(Omnidirectional, Limited, Expanded)， etc
|
| Scanning Type | 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF
|
|
Power Input
|
DC 5V 1A
|
|
Working Current
|
260mA (Average Work), 36mA (Standby)
|
|
Tumble Spec
|
2,000 3.94ft./1.2m tumbles
|
|
Cable length
|
1.8 meters
|
|
Operating Temperature
|
-20°C to 60°C
|
|
Storage
|
-40°C to 60°C
|
❓ Frequently Asked Questions
Q1: Can PTH5U scan barcodes from a phone or tablet screen?
A: Yes, the 2D imaging engine reads from both printed and digital screens, including QR codes for mobile payments.
Q2: Does this scanner support POS system integration?
A: Absolutely. With USB and RS232 connectivity, it's compatible with most POS terminals, PCs, and Android-based systems.
Q3: Is it suitable for industrial use?
A: Yes, the scanner features a rugged housing, high-speed decoding, and reliable performance even in tough environments.
Q4: What size barcodes can it read?
A: It can read barcodes down to 3mil resolution, including small codes printed on compact labels or electronics.
📞 Get a Quote or Place a Bulk Order
Looking for a durable wired barcode scanner for your operation?
👉 Contact us at Info@effon.com for volume pricing, OEM branding, or distributor partnership.
EFFON – Industrial Barcode Scanning Solutions Built for Performance and Reliability
